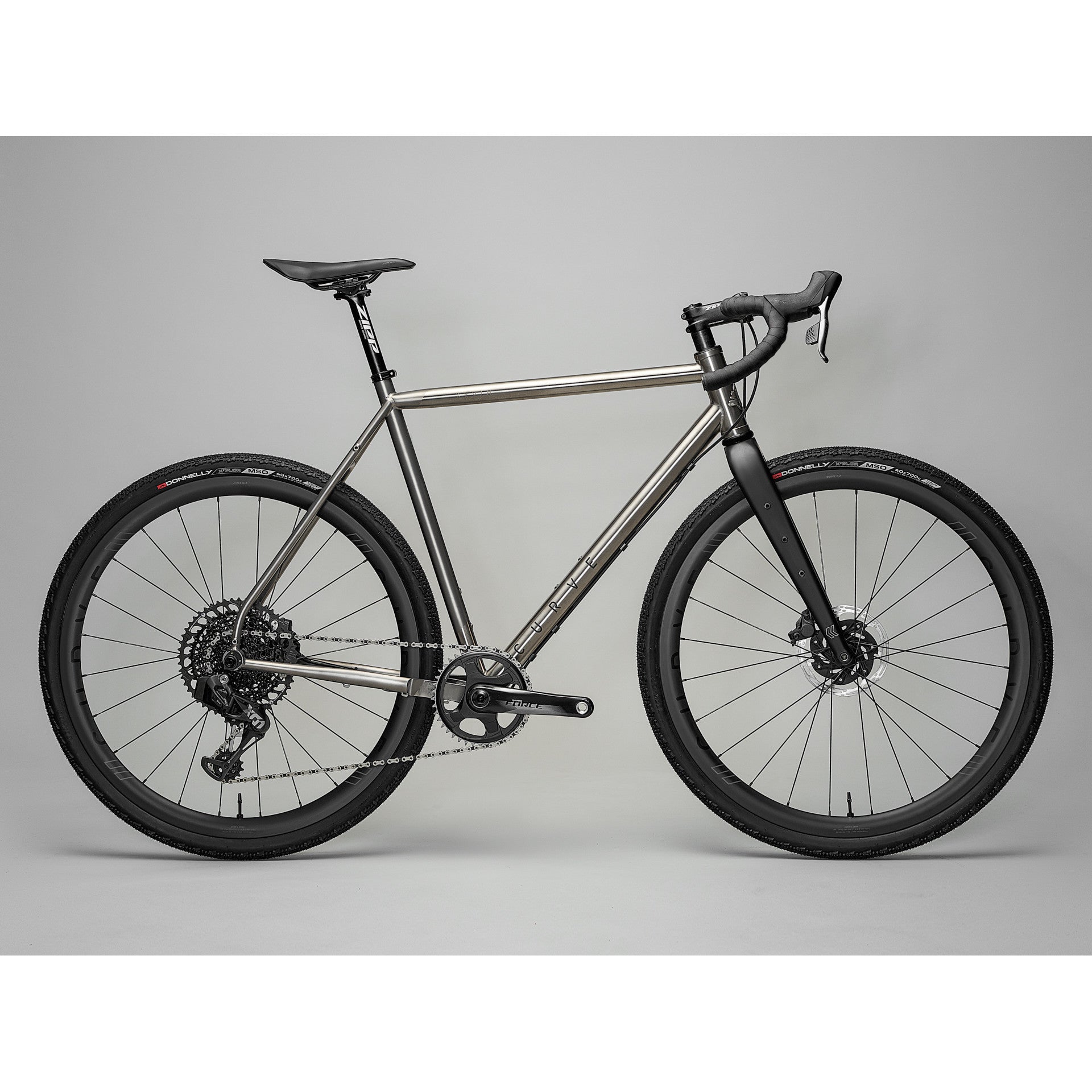

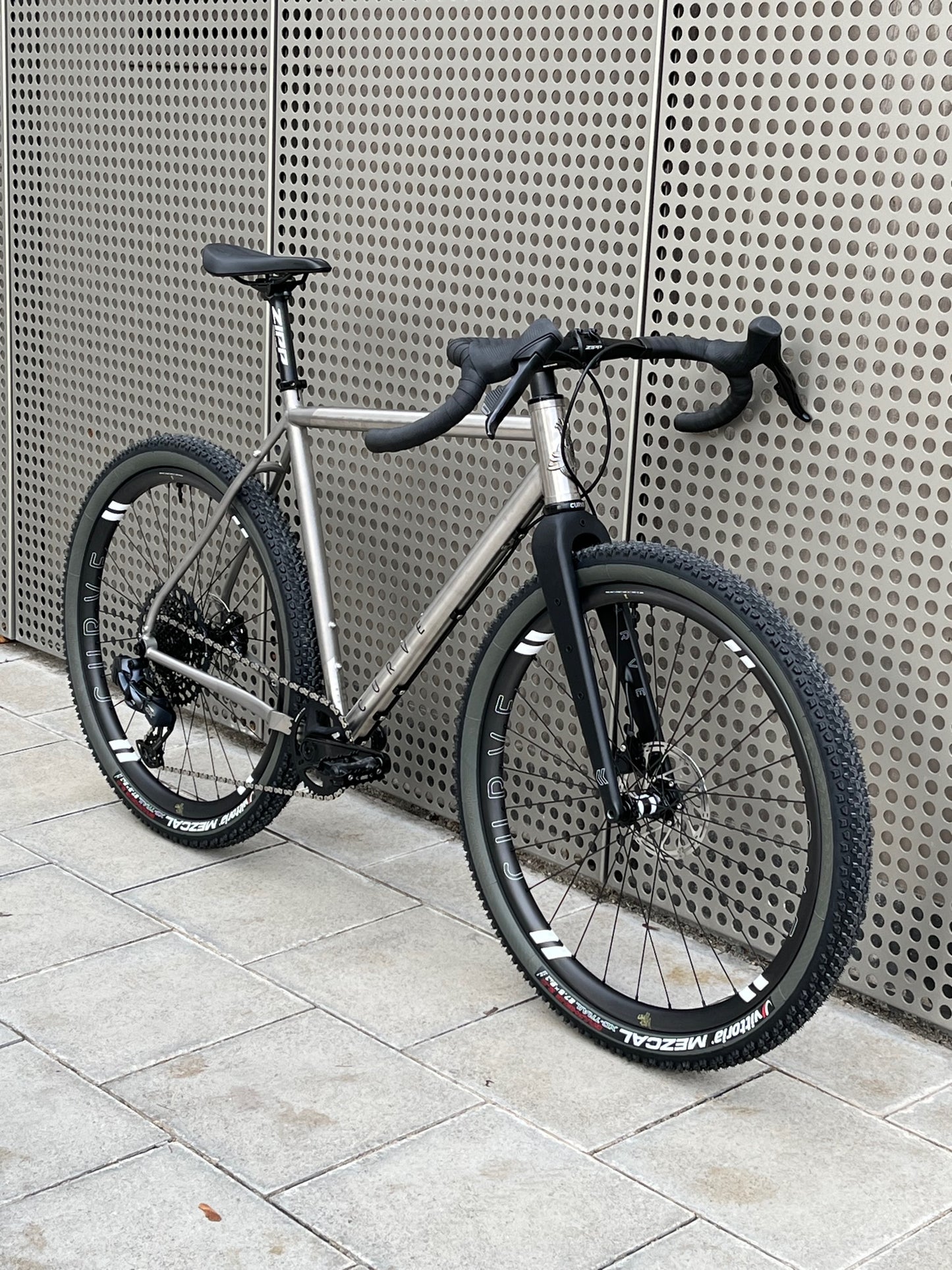

Meet the GXR Ti a.k.a. Kevin
Our titanium GXR, paired with the Ride 400 carbon fork has been tested heavily on adventures worldwide. Many of the Curve team have traversed South America, New Zealand, Switzerland, Swaziland, and more on this magnificent bicycle.
Originally a playful jab at the bike industry's bike naming terminologies, the name ‘Kevin' was coined to name this frame. it soon caught on, and we simply couldn’t resist making it official.
Two Bikes in One
The Ride 400 carbon fork has clearance for wheel options based on your riding style. For example, Kevin can run either 700c wheels with 32–45 mm tyres, best suited for commuting, gravel, and cyclocross, or if you’re looking to tackle some rougher terrain with more traction, use 650b (27.5”) wheels fitted with 1.8–2.2” tyres. Curve has the above wheel options in both carbon and aluminum available.
No Weird Flex

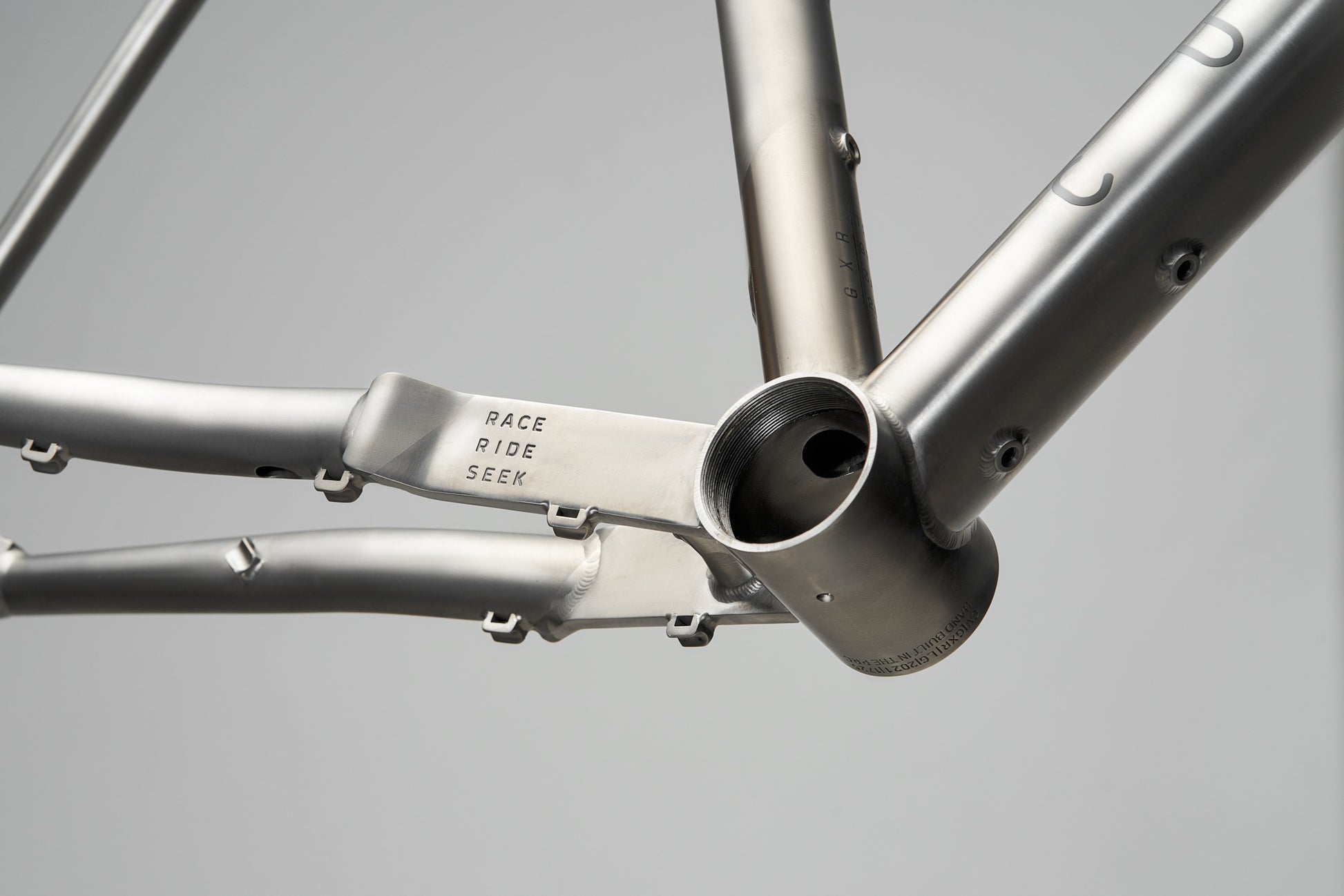

The custom titanium yoke design allows Kevin to run some super-wide gravel tyres in two wheel sizes and stiffens the BB area to avoid frame flex under load.
More Mounting Points

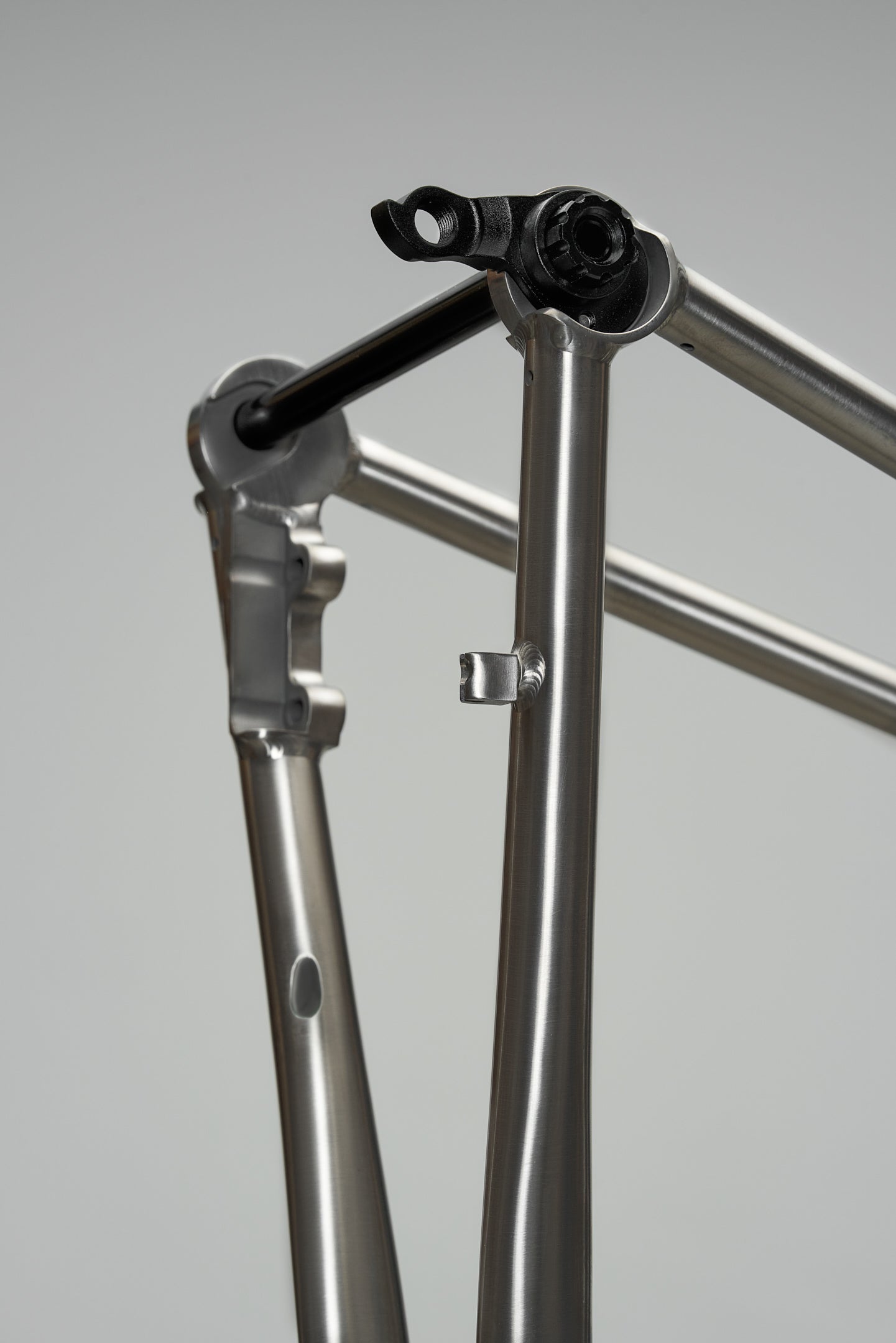

Kevin comes equipped with rear rack mounts, fender mounts, and 3 x bidon mounts; and can run either a 1x or 2x drivetrain. Kevin is ready for single or multi-day bikepacking adventures due to extra tyre clearance, a longer wheelbase, and a more stable platform.
Ready for Adventure

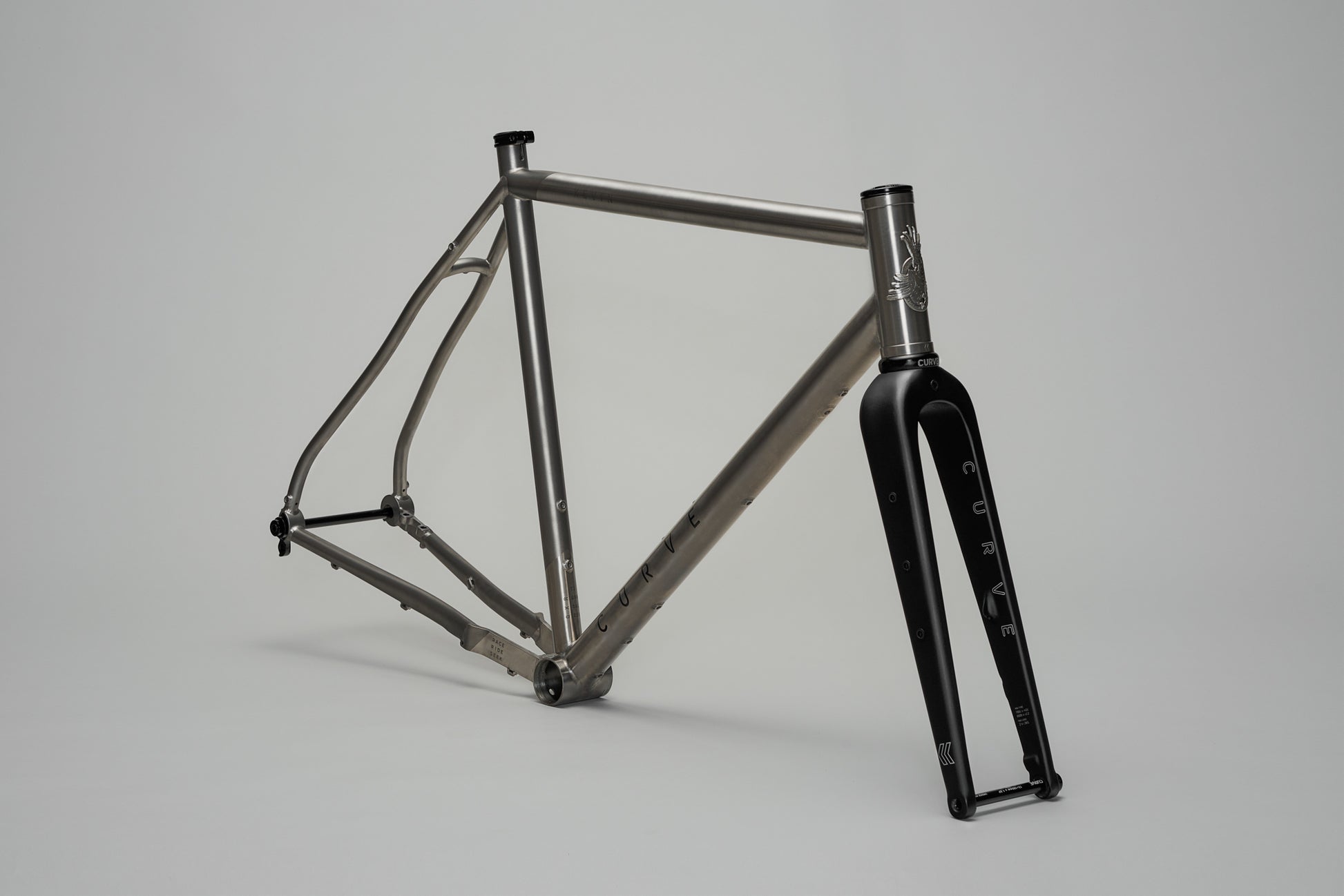

Our Ride 400 fork, originally titled GXR fork, was built to complement the Kevin of Steel and titanium GXR frameset. Featuring 3 x 12 mm M5 mounting points on each blade, the Ride 400 fork can accommodate anything from extra water bottles, our Rocket Pooches, or any other micro pannier or fork-specific bag.
There is ample room for bikepacking bags on all frameset sizes. To make sure current, prospective or custom bagging fits your frame size please see our Bagmaker Drawing page.

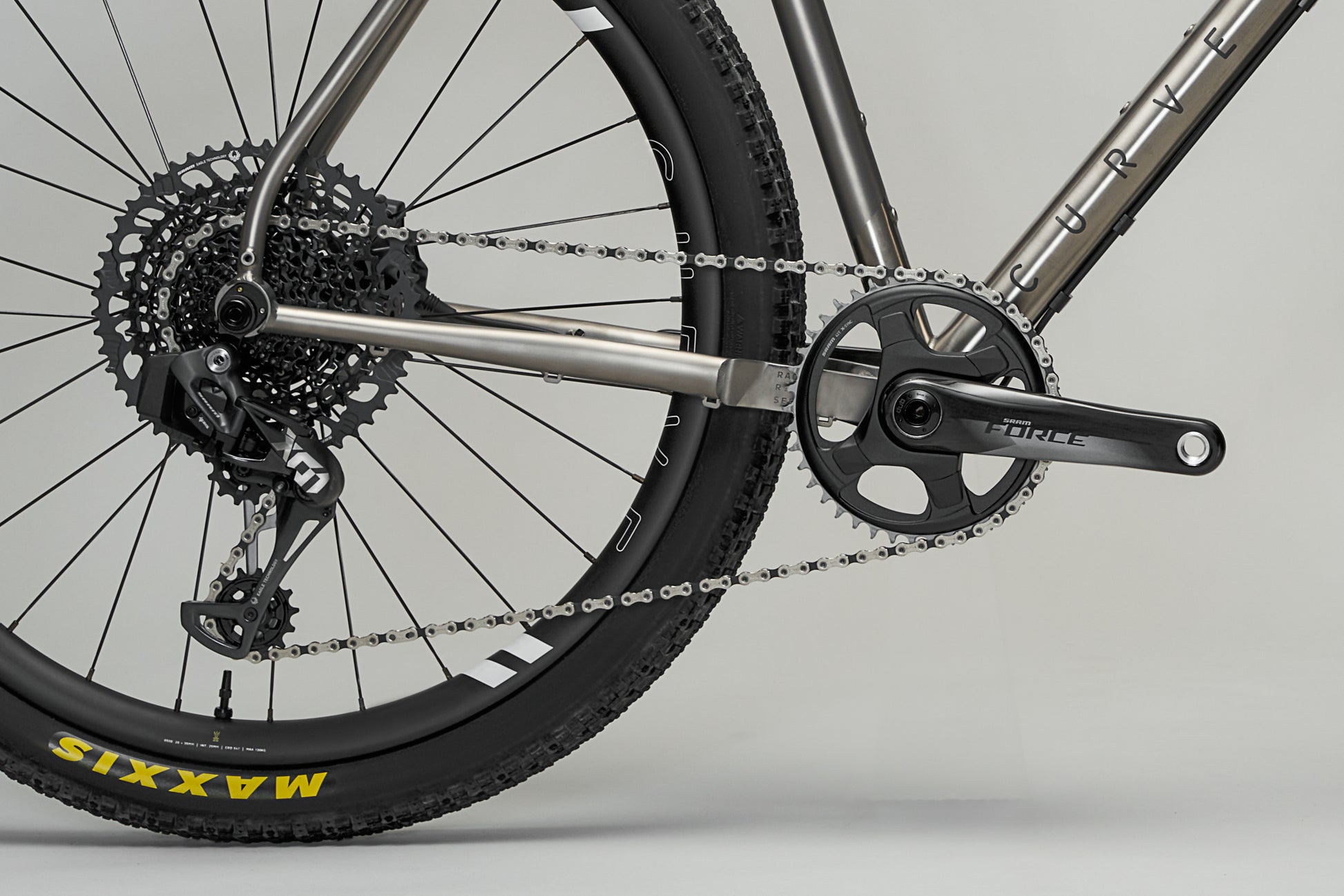

SRAM Rival-Eagle AXS 1 x 12 sp
Shifter/Levers - Rival AXS 1x12 sp - LHR / RHF
Brakes - Rival Flat Mount Disc // CL Paceline Rotors 160 mm
Crank - Rival D1 DUB WIDE- 38t | XXS-SM: 165 mm | M: 170 mm | LG–XXL: 175 mm
Bottom Bracket - Curve T47 DUB 68 mm

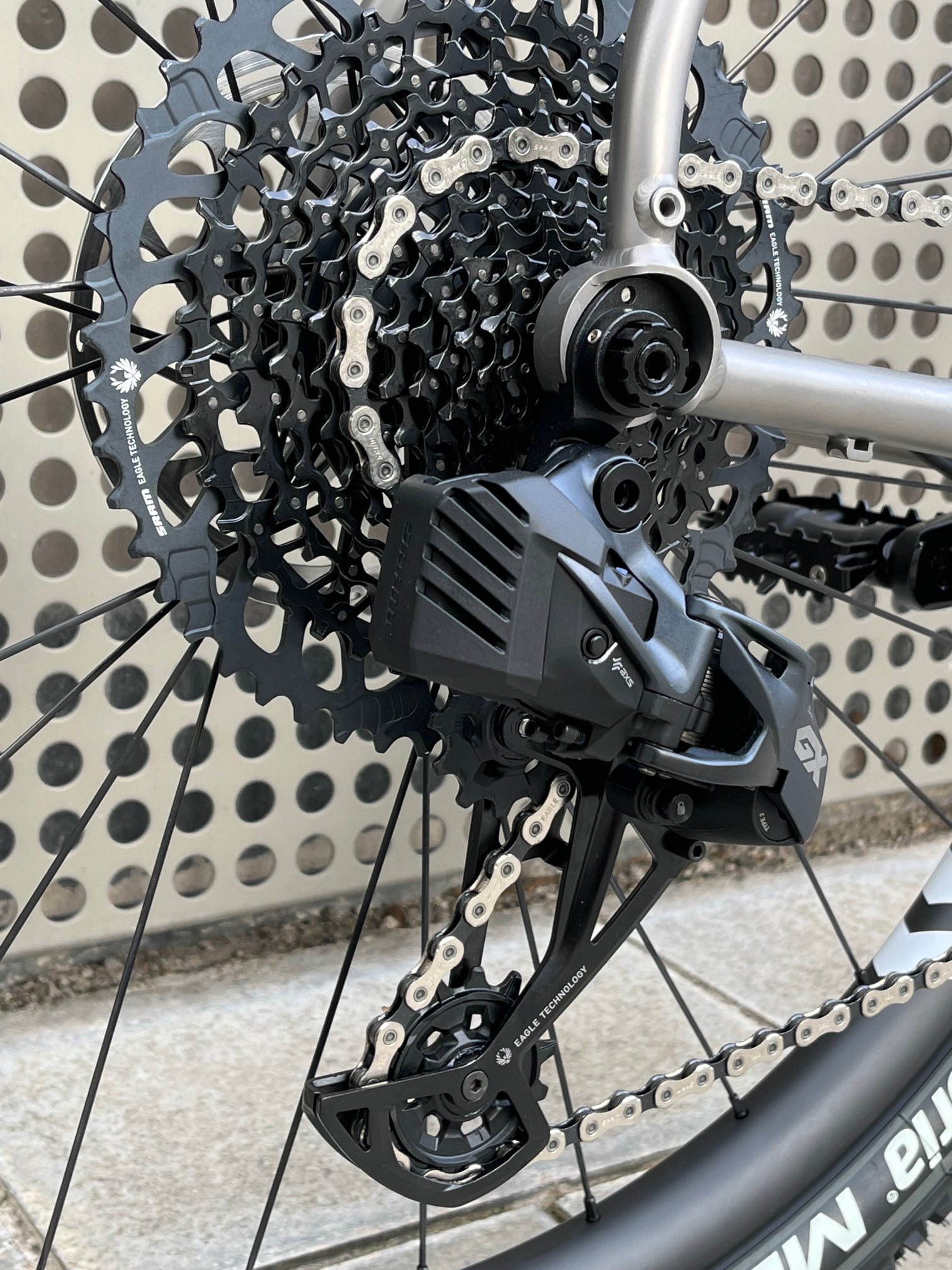

Rear Derailleur - GX1 Eagle AXS Lunar
Cassette - XG 1275 EAGLE 10-52t 12 sp
Chain - GX Eagle 12 sp

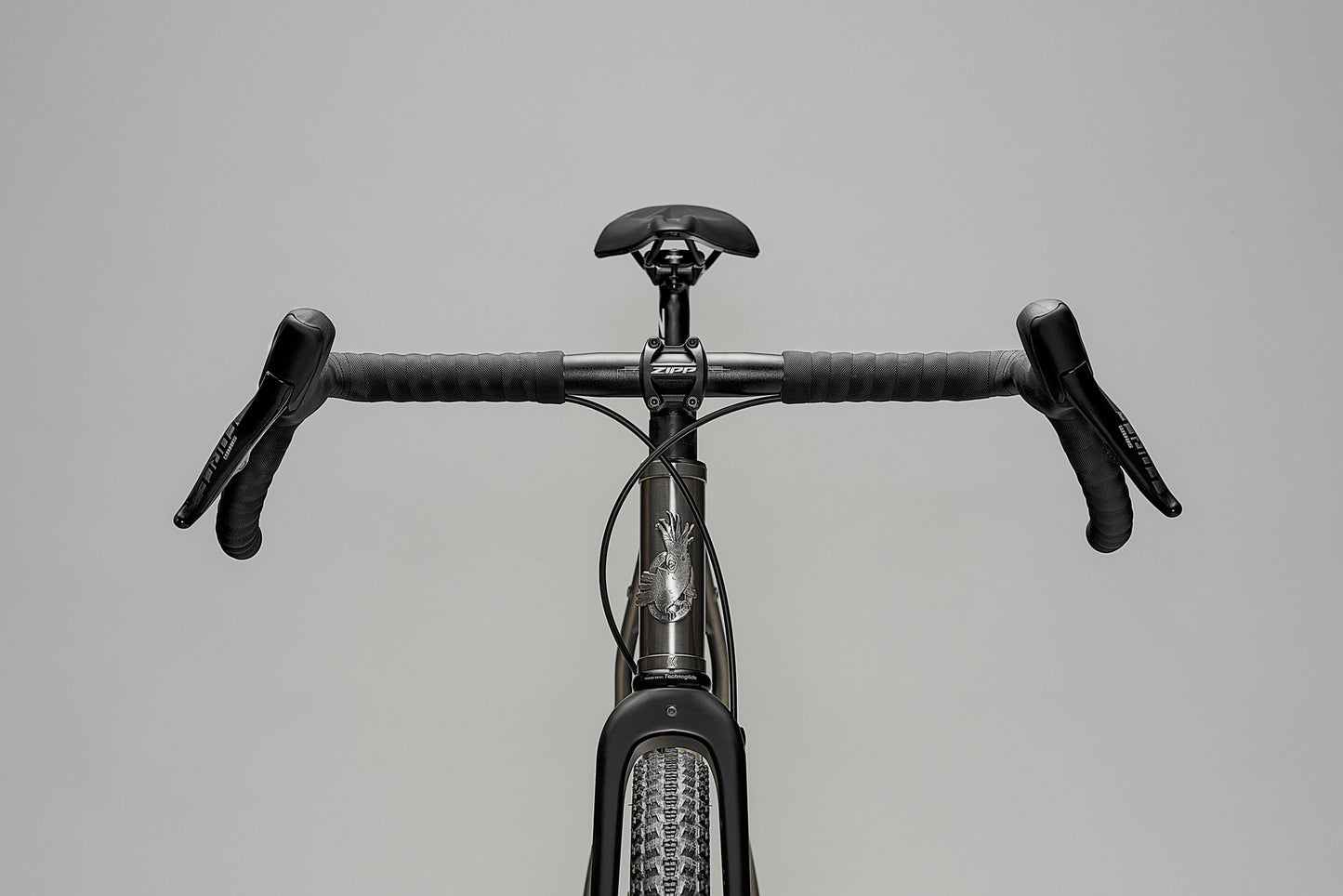

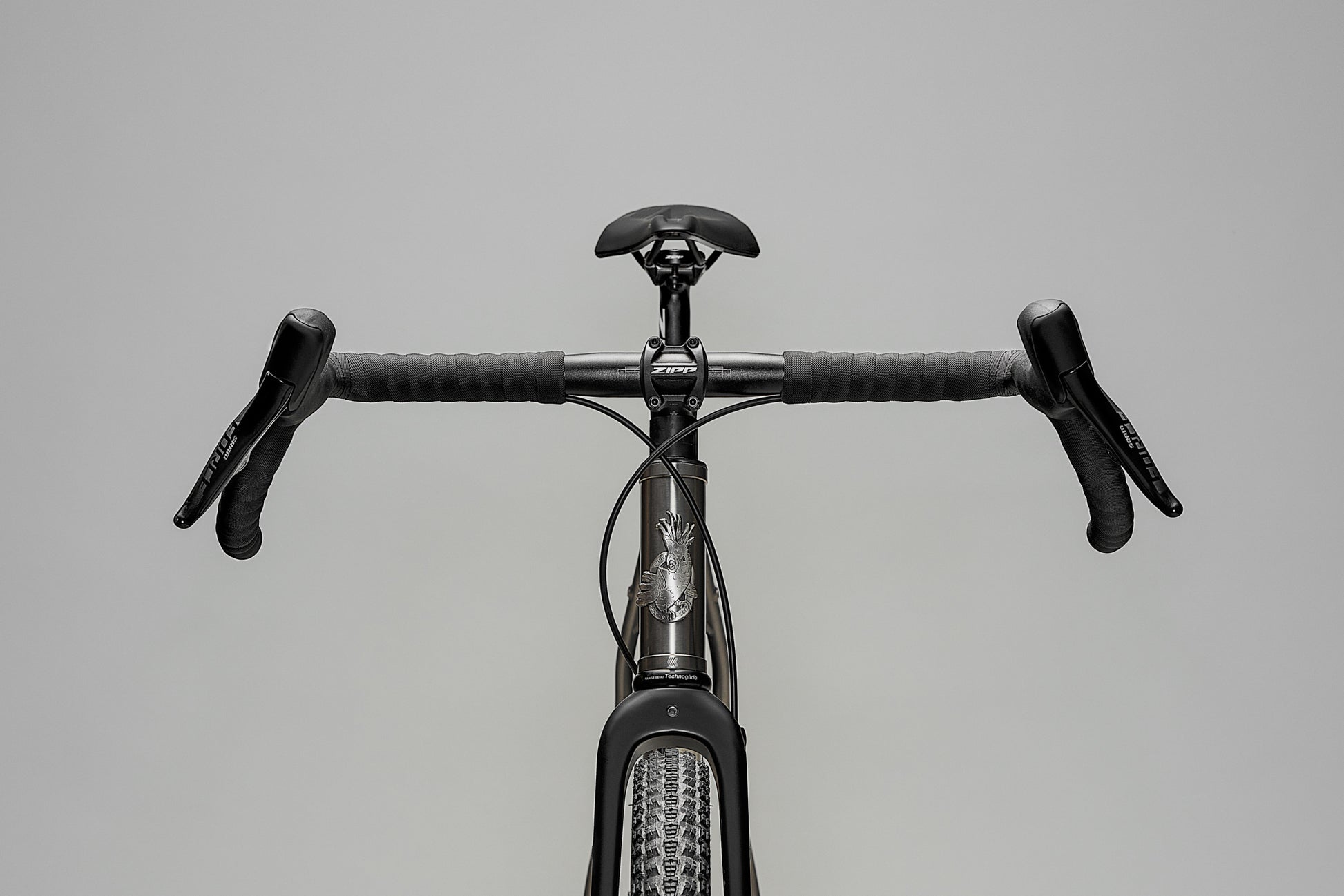

Bars - Curve Walmer Bar XXS: 43 | XS-M: 46 | L–XXL: 50
Stem - Zipp Service Course XXS–S: 70 mm | M–L: 80 mm | XL-XXL: 90 mm
Seatpost - Zipp SC 0 Setback 27.2 mm
Saddle - Fi'zi:k Vento Argo
Wheelset - Dirt Hoops - 650B Carbon; 25 mm internal, 35 mm external, 27 mm deep
Hub - DT Swiss 350 28H Centre Lock
Spokes & Nipples - Sapim CX Ray & Brass
Tyres - Vittoria Mezcal III 27.5 x 2.1"
Bar Tape - Curve black anti-shock
