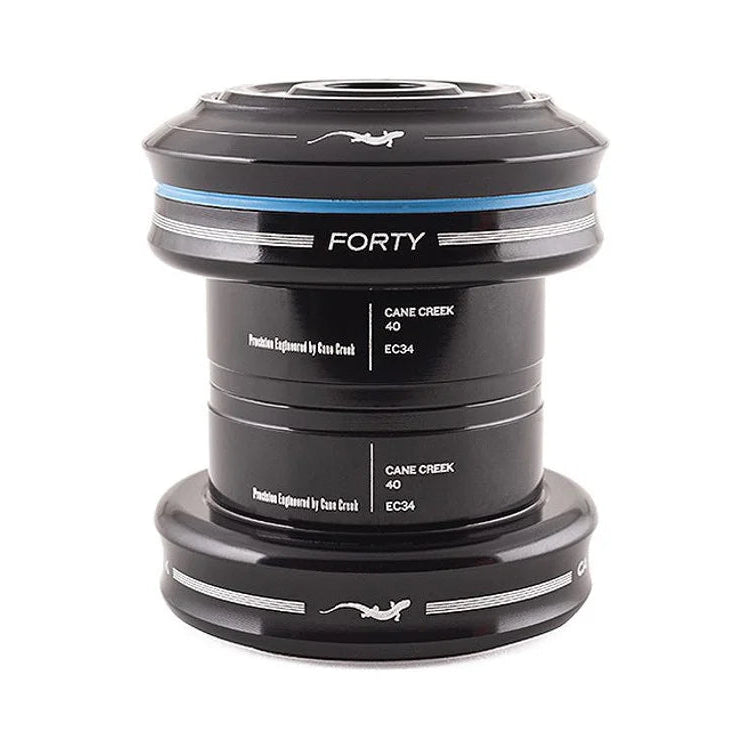

Cane Creek Forty - Headset

Cane Creek Headset 40.EC34/28.6 | EC34/30 1 1/8"

Cane Creek's 40 series sets the standard for durability, value, and performance. Derived from the 110 series, the product range combines everything you need for uncompromising functionality – durable and lightweight.

Technical data:

Material: 6061 T-6 aluminum (housing, cap), steel
Design: ahead, EC (External Cup)
Steerer tube: 1 1/8"
S.H.I.S. upper part: EC34/28.6
S.H.I.S. lower part: EC34/30
Press-in dimension top Ø: 34 mm
Press-in dimension bottom Ø: 34 mm
Outer diameter top: 45 mm
Outer diameter bottom: 45 mm
Construction height top: 16 mm
Height bottom: 12 mm
Bearings: burnished industrial angular contact ball bearings, double sealed
Color: Black

Weight: 117 g (including Ahead cap & claw)

Manufacturer Information

Cane Creek
355 Cane Creek Rd
Fletcher, NC 28732
USA
