Note: This is a pre-order. Frames are expected to arrive in September. PreOrders are final, no return or refunds.
*** From Magic Components:

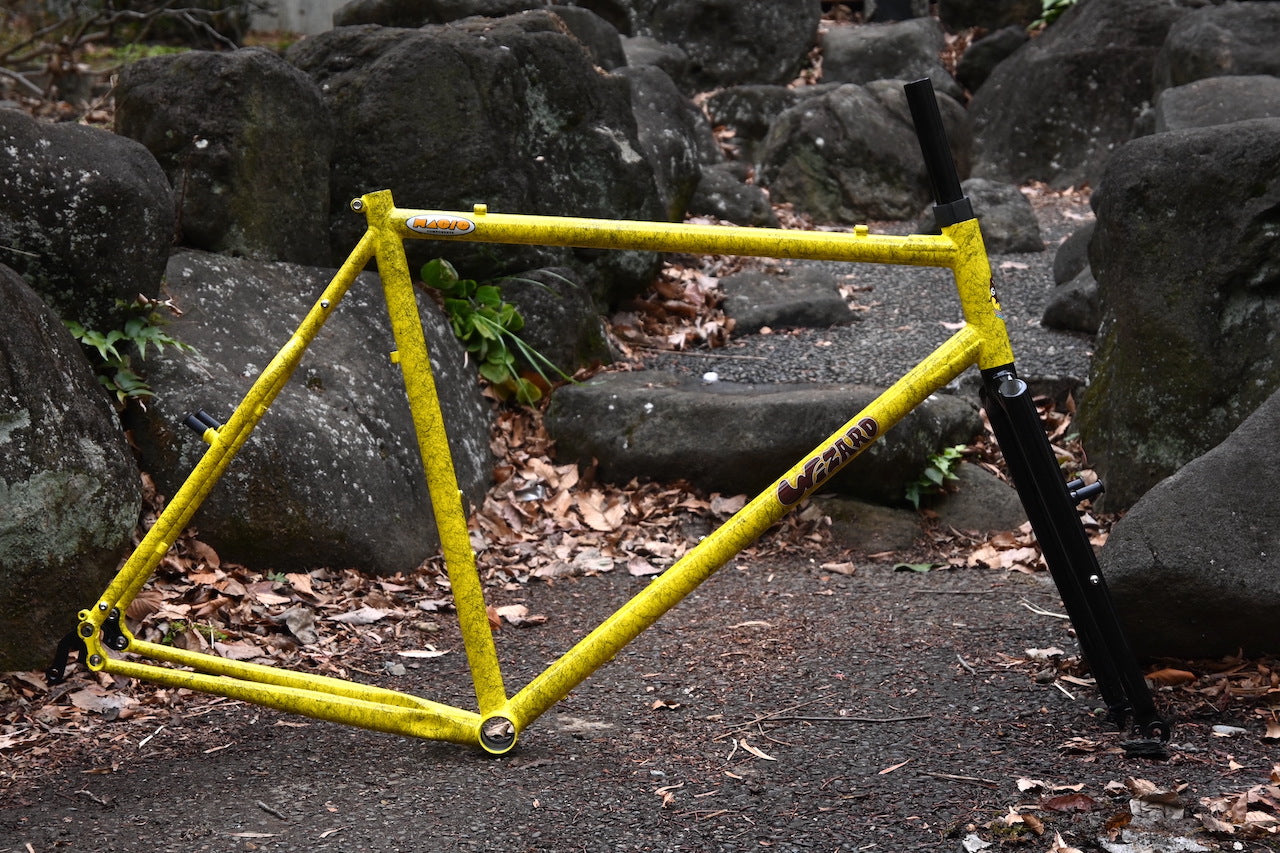

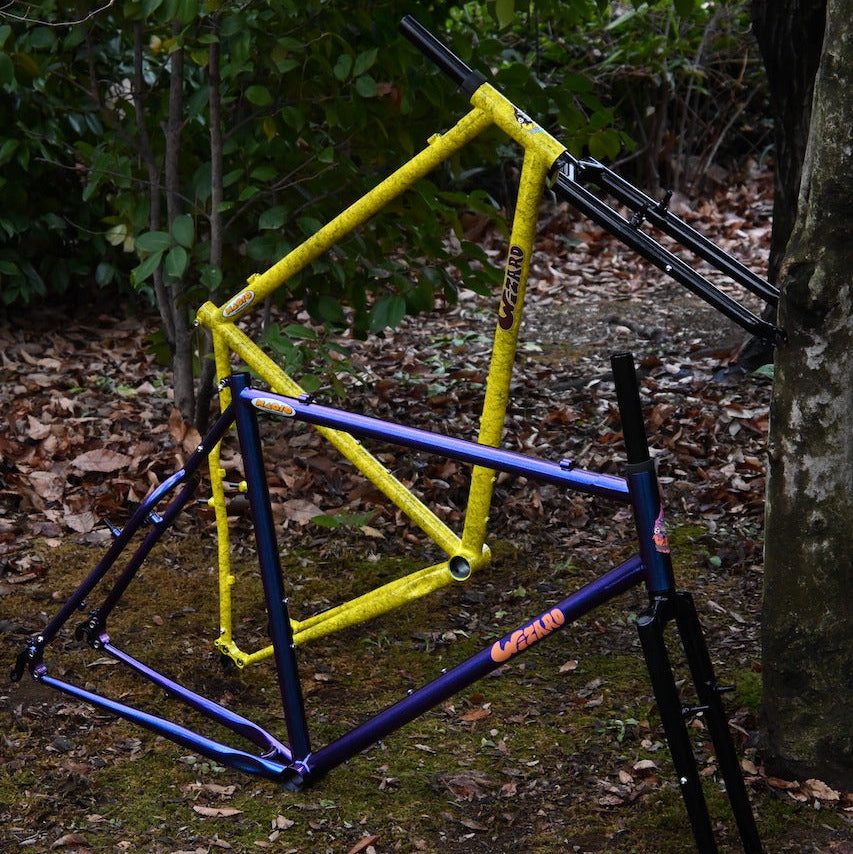

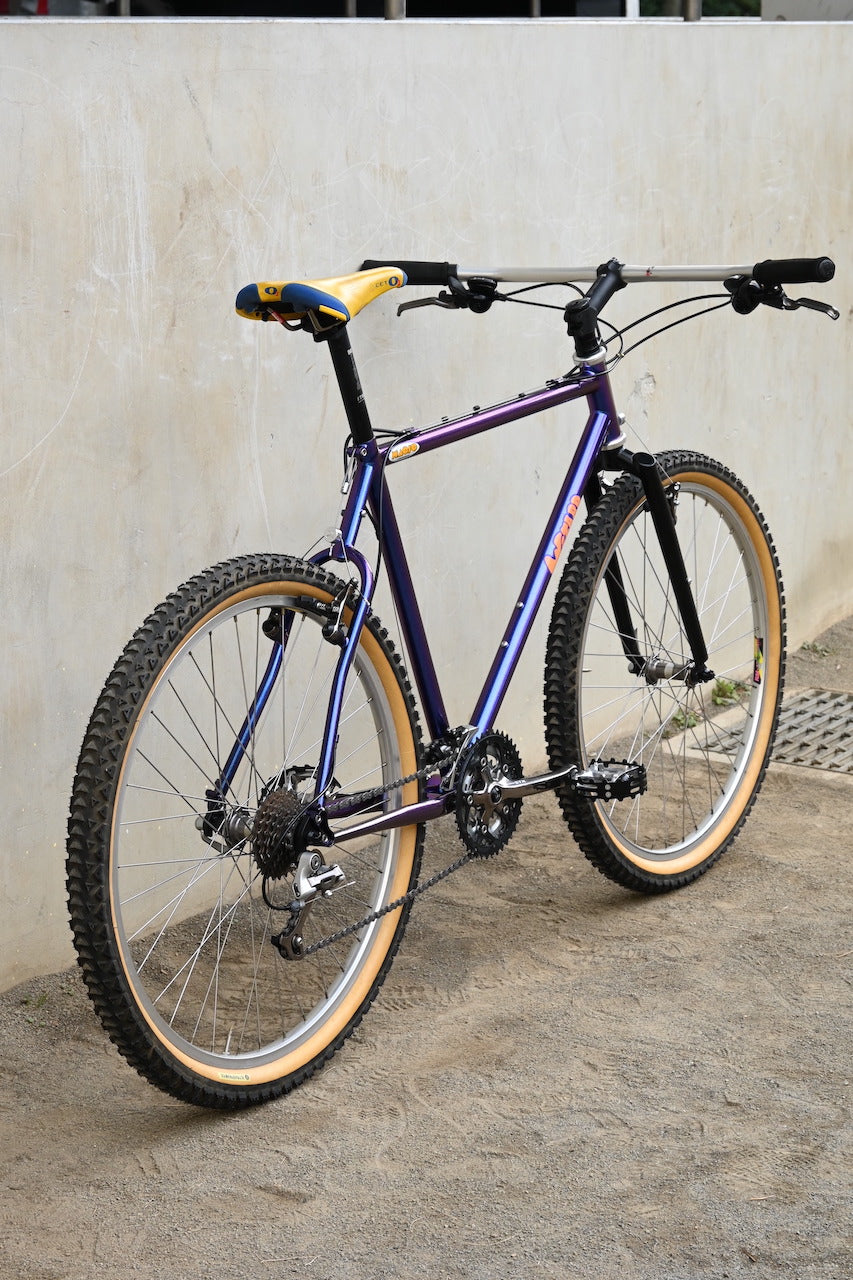

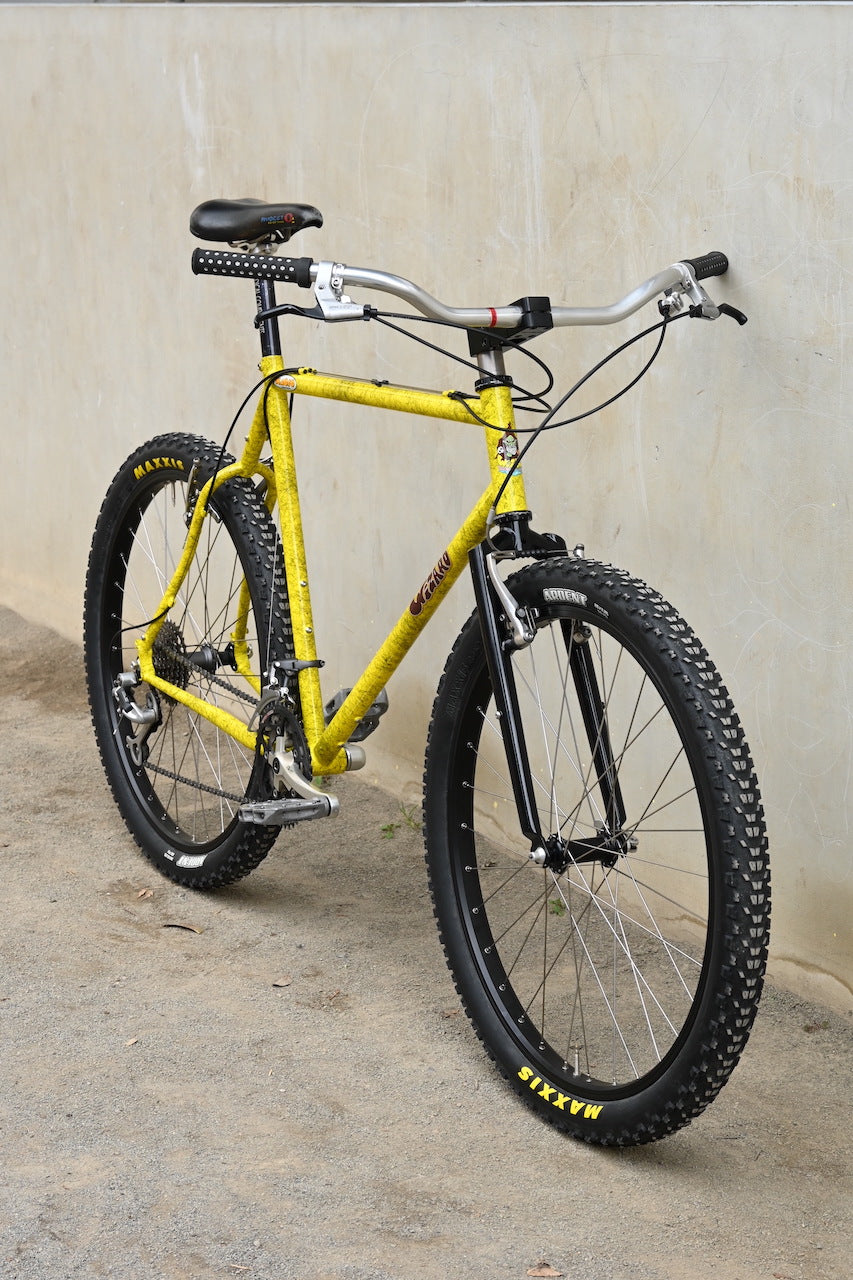

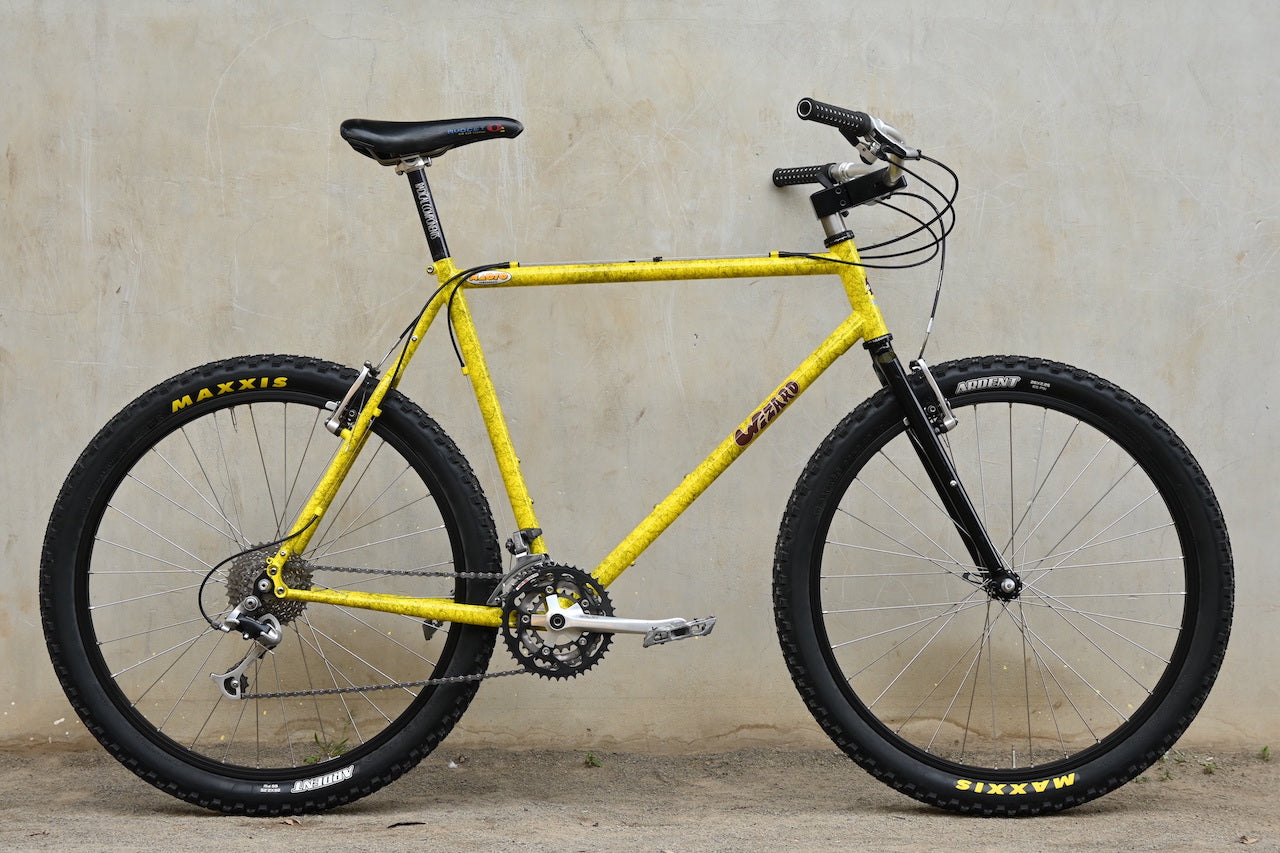

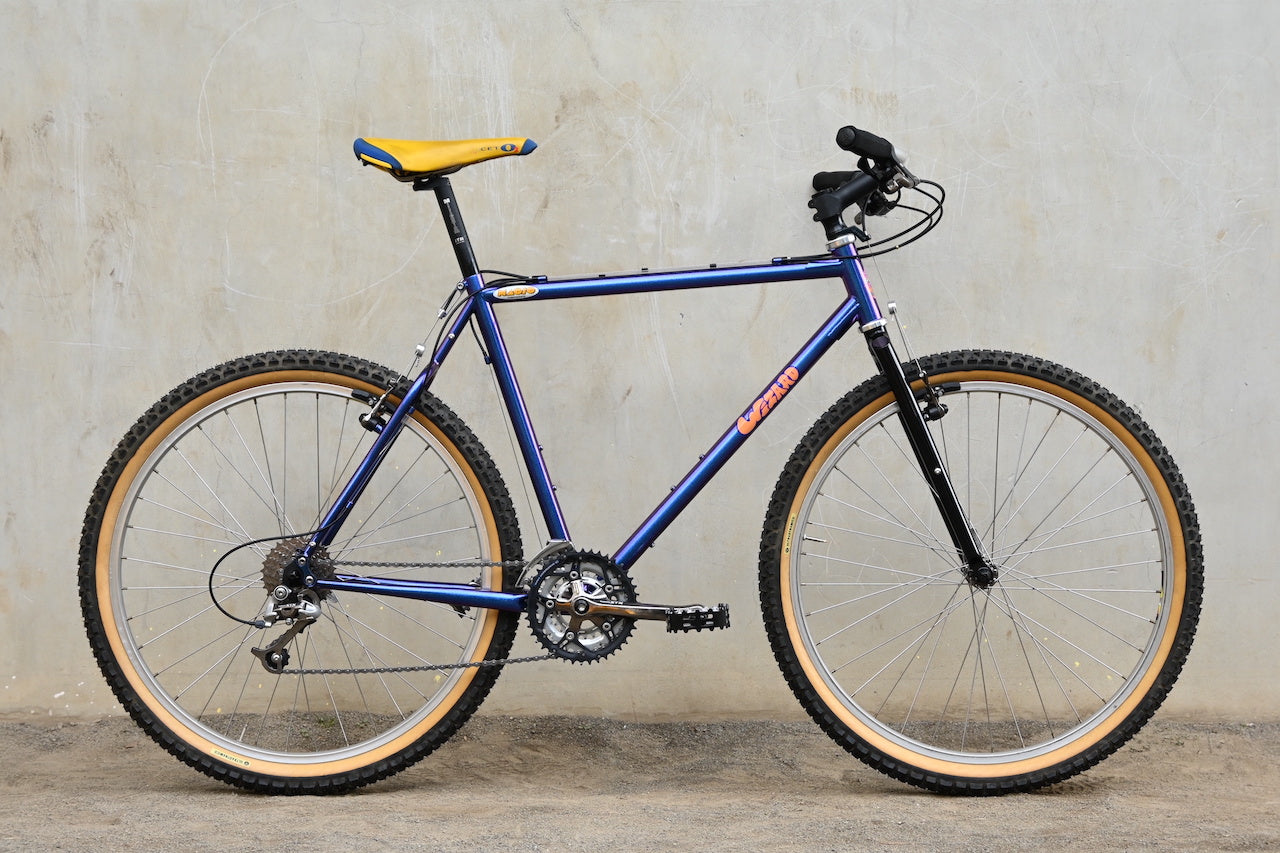

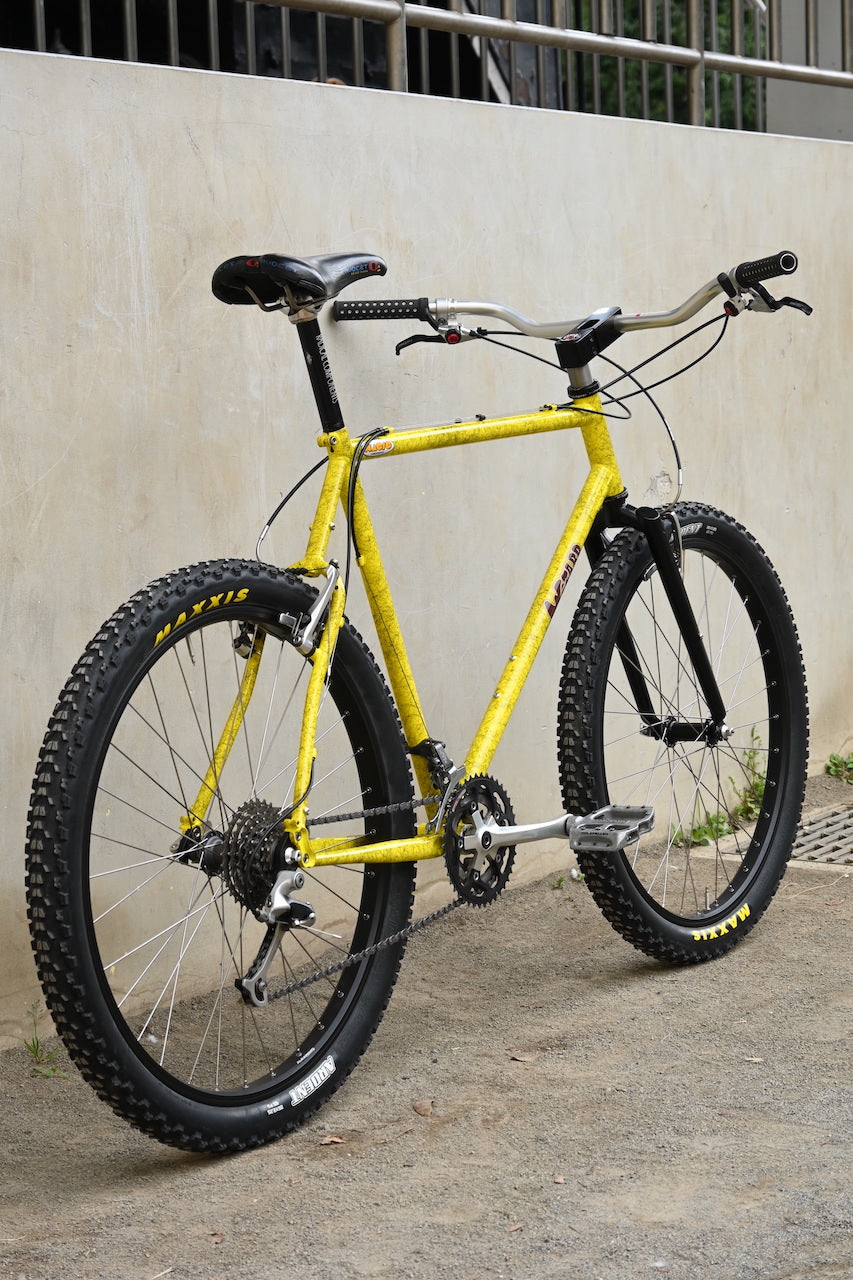

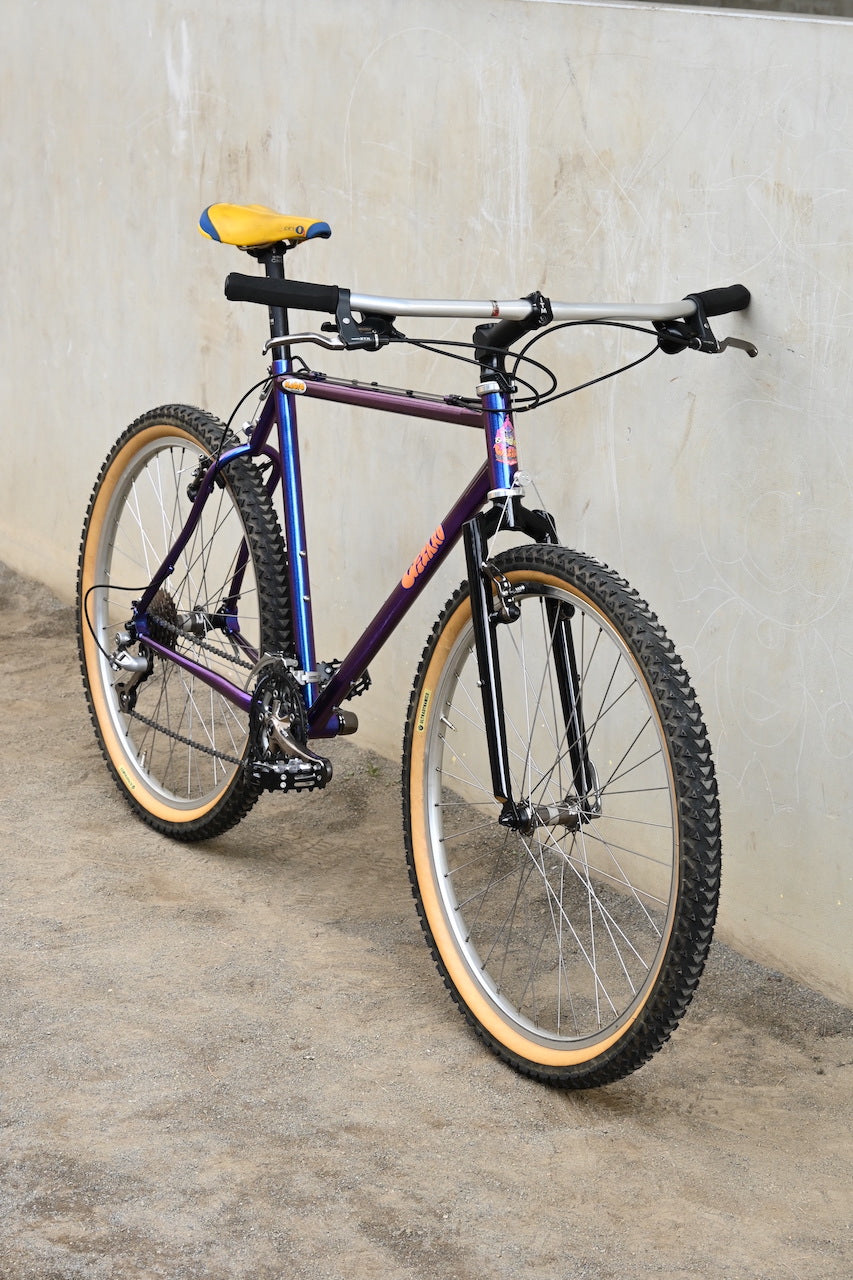

Back to the 90s! That was our wish, and that's why we make “The WIZARD”. What we wanted to make was a normally 26"ATB.
90s style that's easy to use even now... Standard and simple specifications.

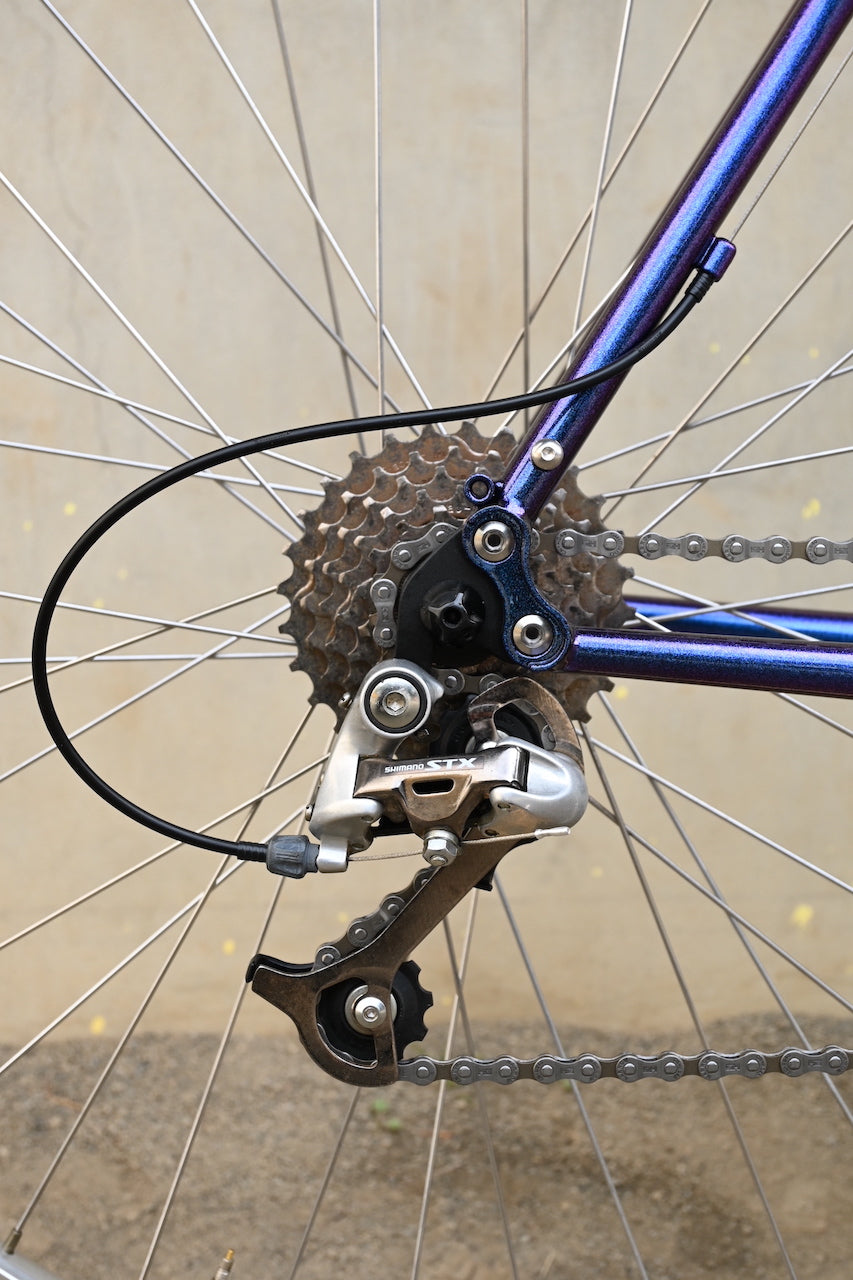

132.5mm rear spacing.
Can be converted to single speed (with horizontal dropout - not included).
The magical frame that will grant your wishes…
That's our WIZARD.

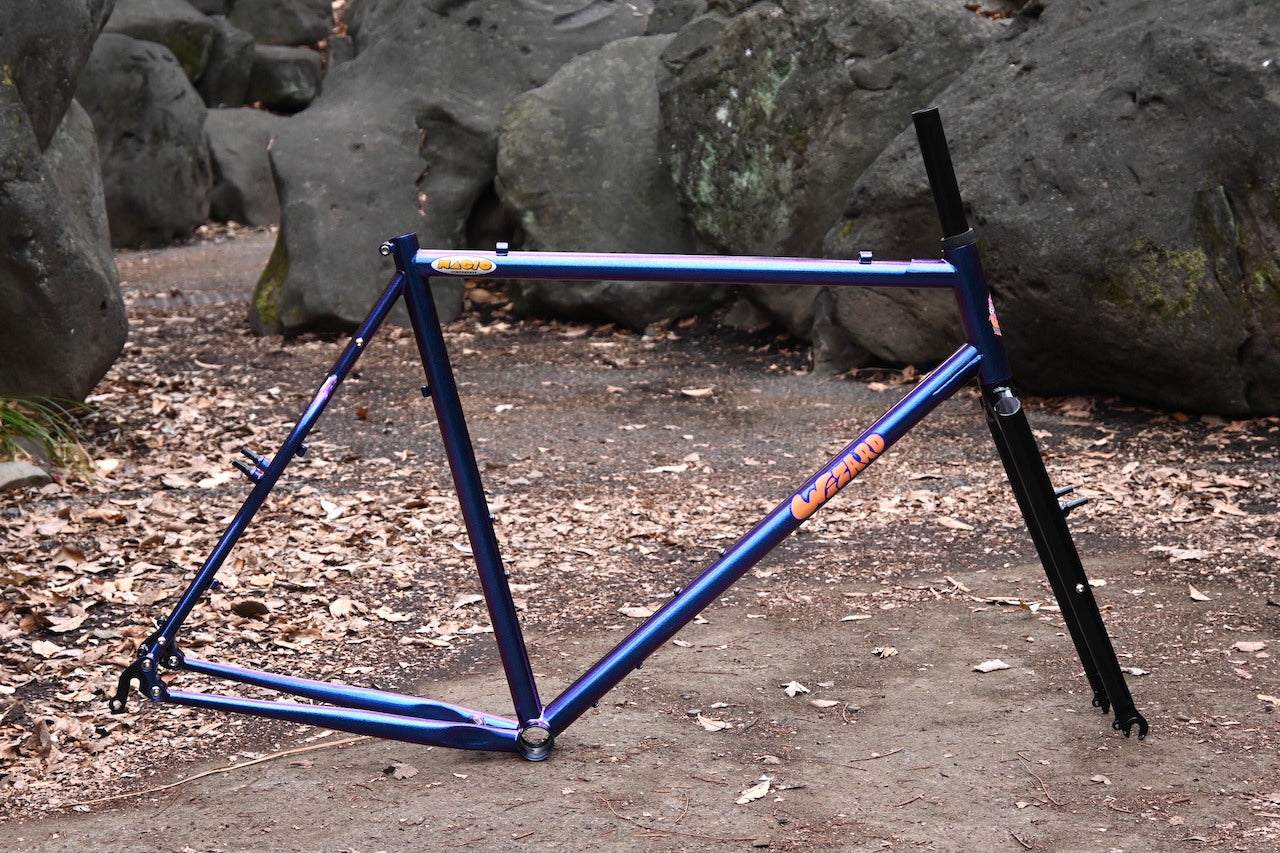

Specs

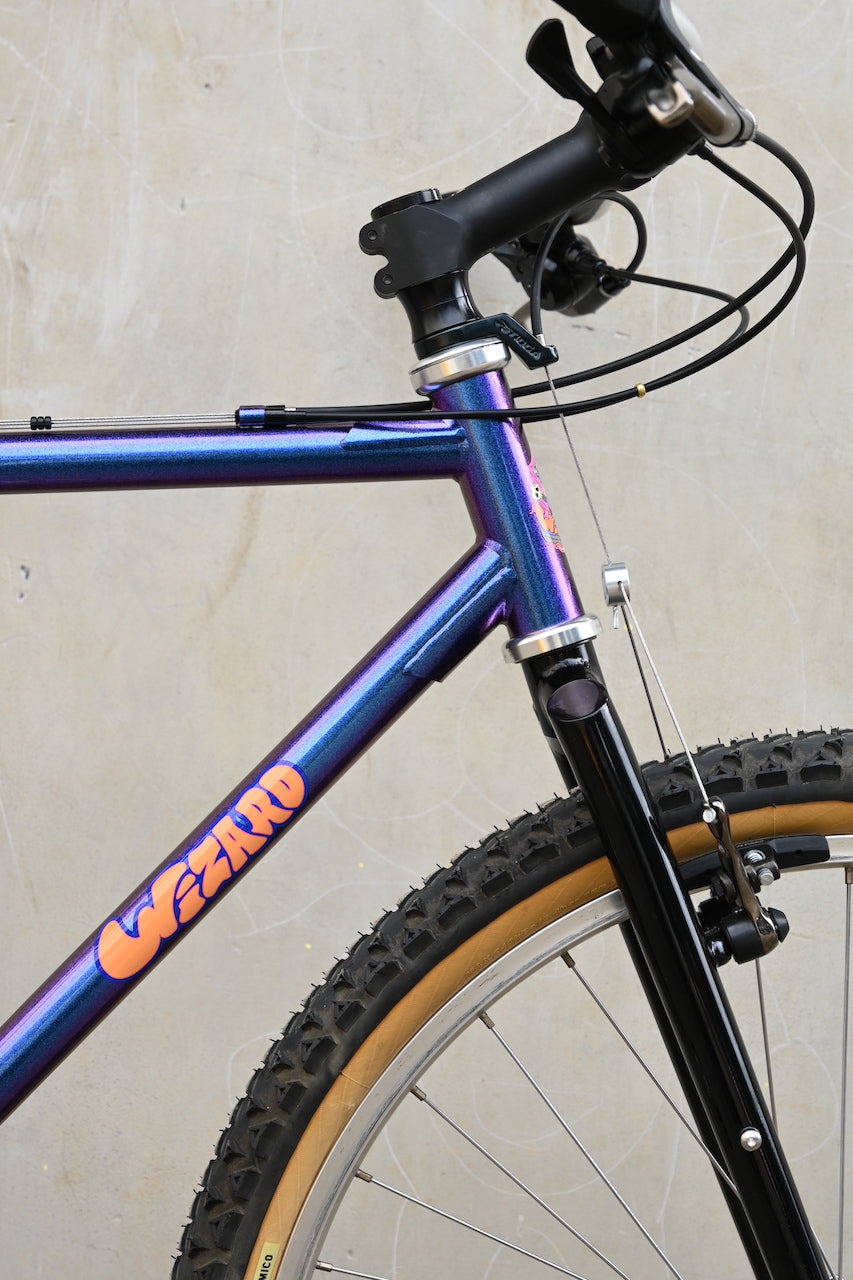

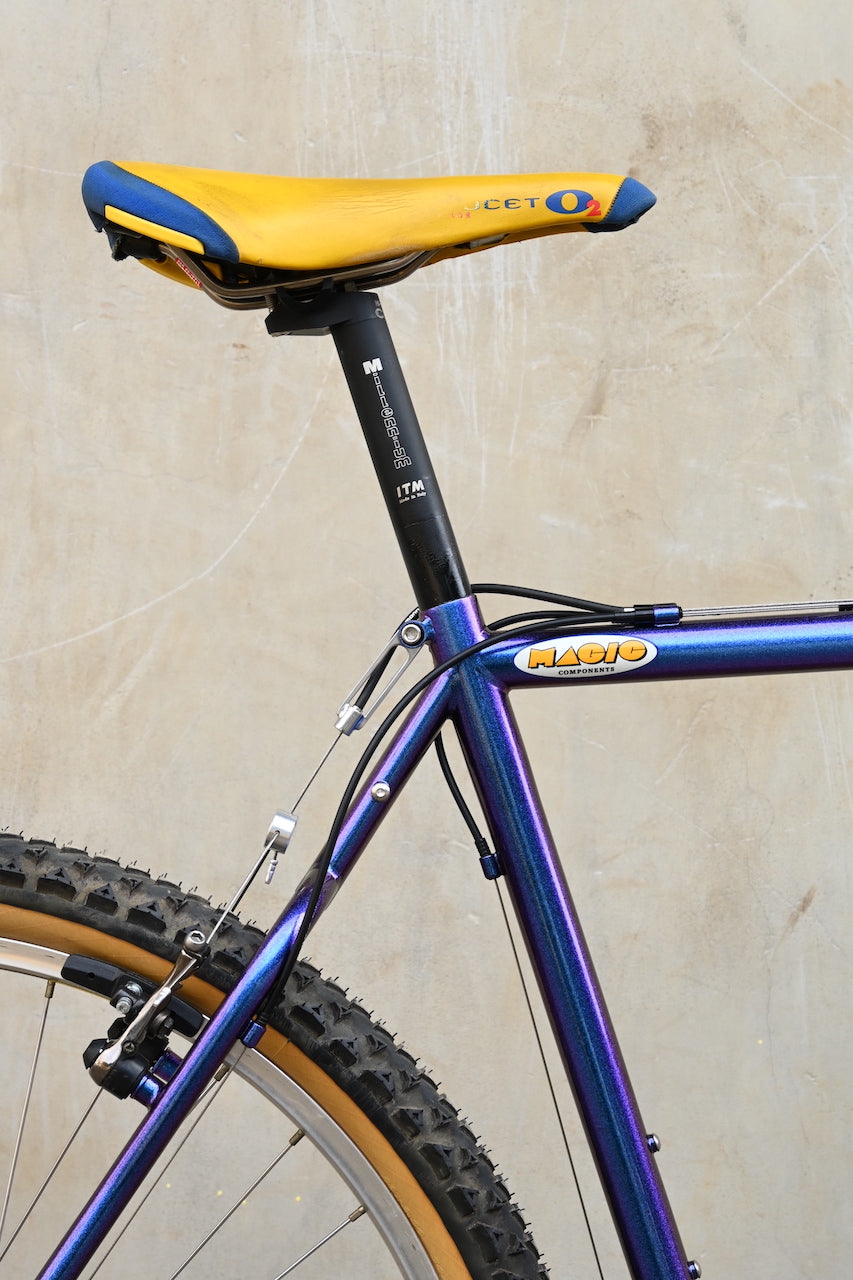

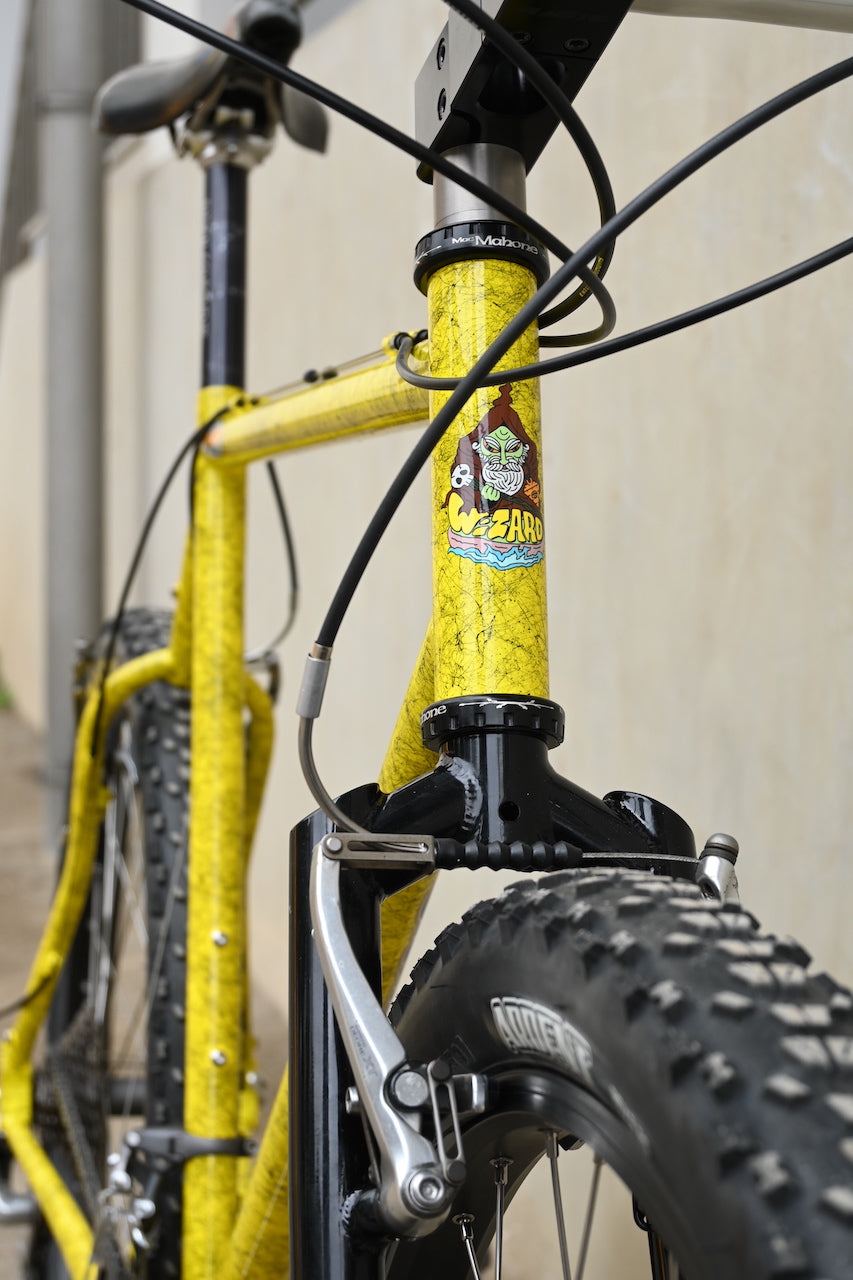

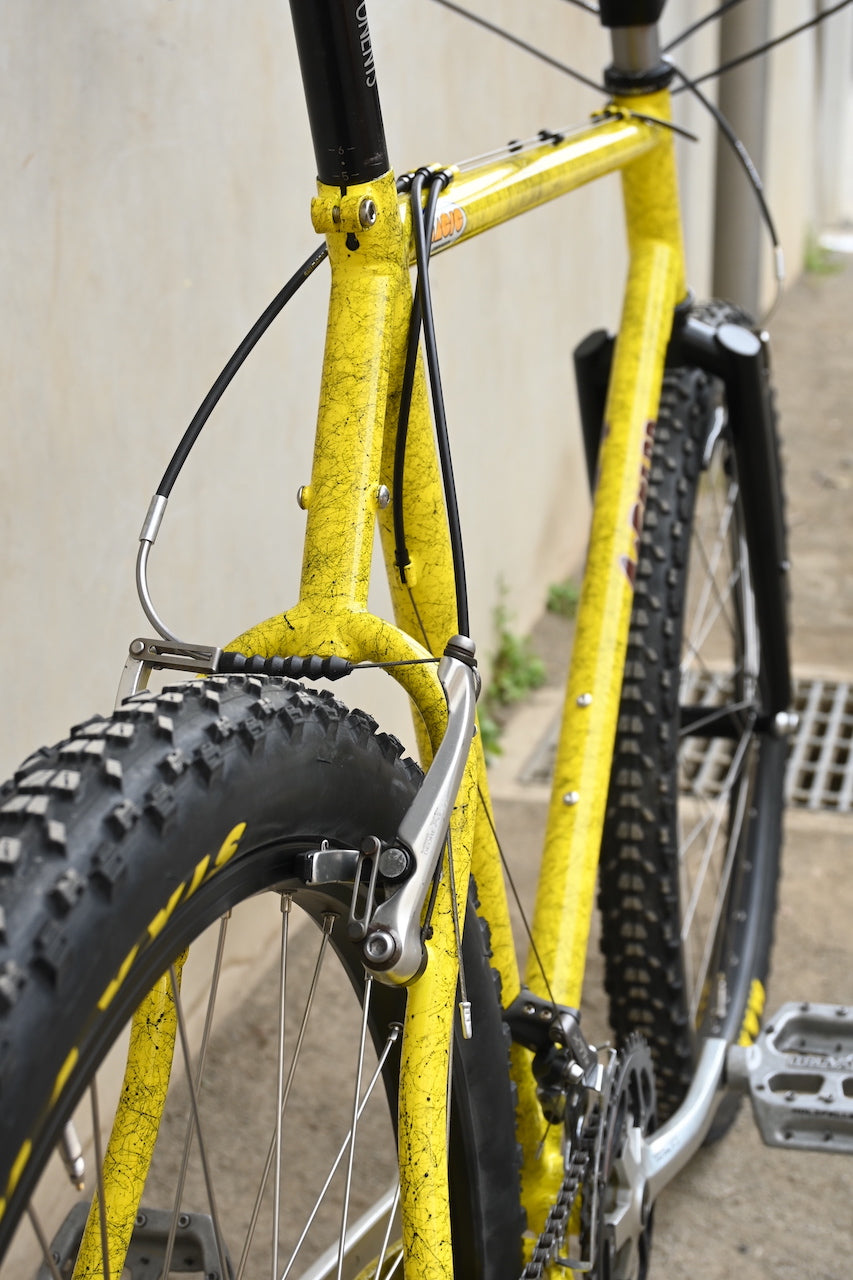

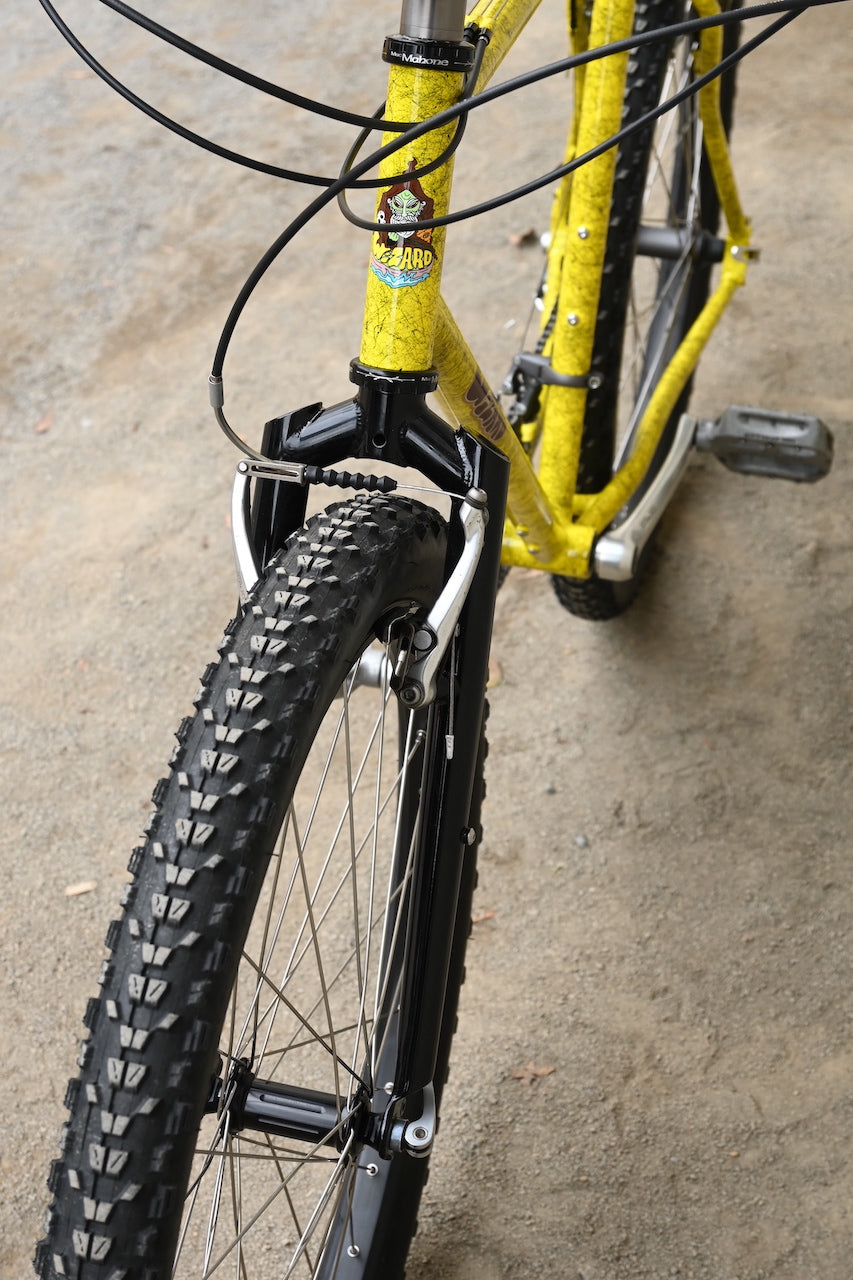

・Tube : Cro-mo Steel ・Head Tube Diameter : 1-1/8" ・Bottom Bracket : 68mm English (BSA) Threaded ・Rear End Spacing : 132.5mm, QR ・Seat Post Diameter : 27.2mm ・Brake mount : V-brake or Canti brake ・Max Tire Size : 26 x 2.5" ・Chainring clearance : Triple crank 46t x 34t x 24t ・It can be change to the Horizontal dropout - not included! ・Rear rack and mudguard mounts. ・Triple cage mounts. ・Passed the "ISO City/Trekking standard test" ・Made in Taiwan.
Frame Geo
Size
S (19.6”)
M (20.5”)
L (22”)
XL (23.6”)
Top Tube (Effective)
570mm
570mm
600mm
630mm
Seat Tube (C-T)
500mm
520mm
560mm
600mm
Head Tube Angle
70°
70°
70°
70°
Seat Tube Angle
72°
72°
72°
72°
Head Tube Length
135mm
120mm
150mm
180mm
Chainstay Length
425mm
425mm
425mm
425mm
BB Drop
50mm
50mm
50mm
50mm
Fork Rake
45mm
45mm
45mm
45mm
Fork Axle To Crown
395mm
395mm
395mm
395mm
Manufacturer Information Crumb Works / Magic Components Keita Matsumoto 4-42-11-102 Chou, Nakano city Tokyo 1640011 Mail: crumbworkstokyo@gmail.com Customer Service: 0363380537
