Pre-Order - Rivendell - Lugged Roadini - Frameset

Please note: this is a pre-order. The estimated arrival time of the framesets is May 2026.  Pre-Orders are final - no refunds and returns.

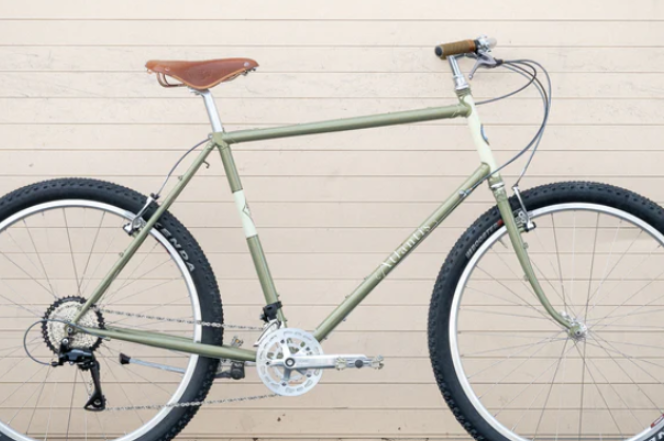

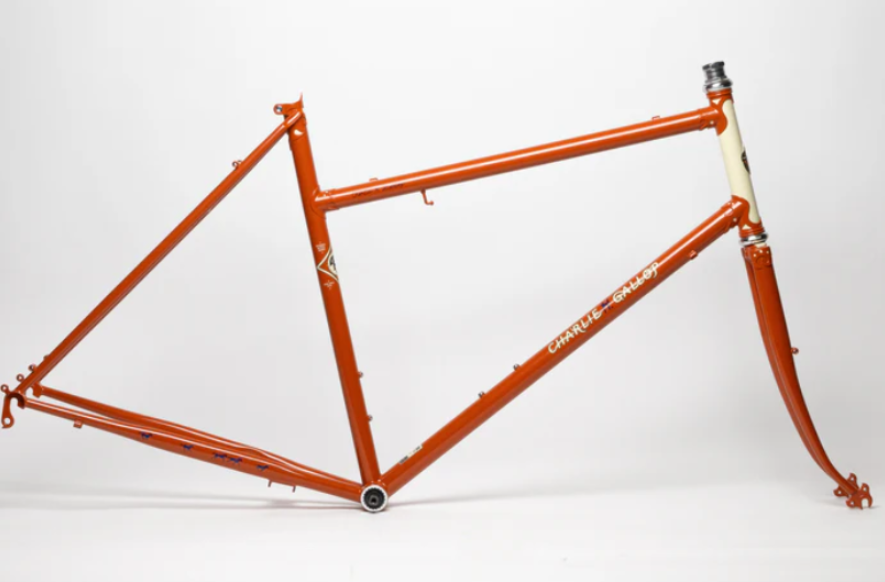

Note: the new colors in 2026 will be "Dark Orange" and "Sergio Green". You can find color samples from other frame models in the images.

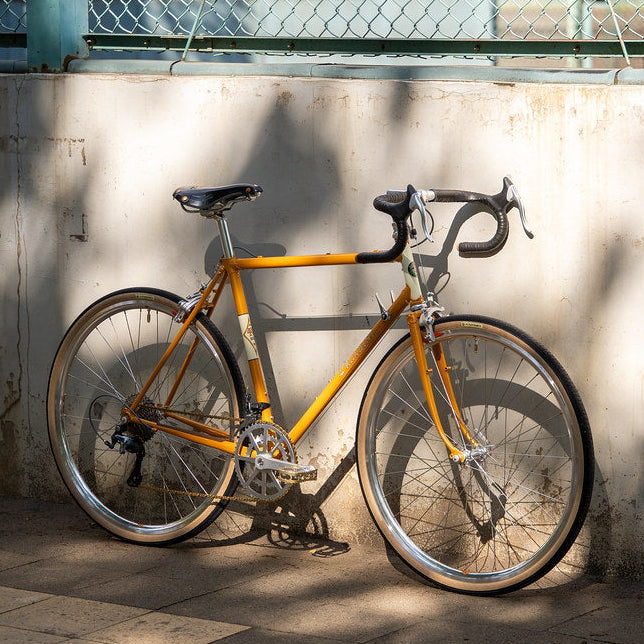

The Roadini is an all-around, all-weather road bike. For riding on any road surface with day-ride loads and probably drop bars, it’s perfect. Albatross bars run a close second. The Roadini gives up nothing to modern extreme bikes on smooth, ideal roads, and is far better in every way when conditions are crappy. It has way more tire clearances of the oldies, higher quality overall construction, is more comfortable, and rides like a Rivendell.

BUILT FOR: Road riding of all kinds. Fitness rides, club rides, solo local loops, riding with friends who are also riding road bikes.

ALL WEATHER: Easily fendered, so you can ride it all year long.

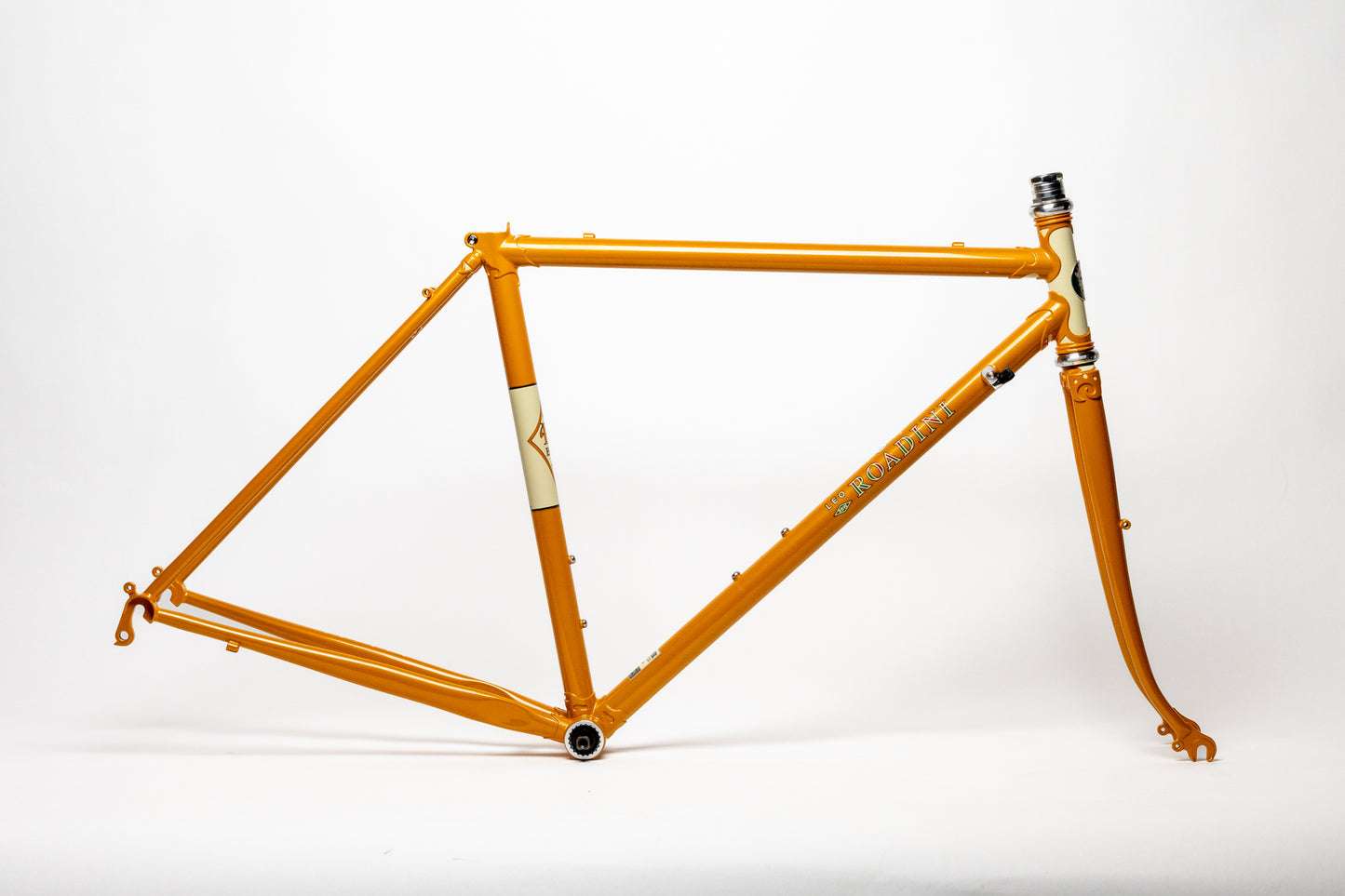

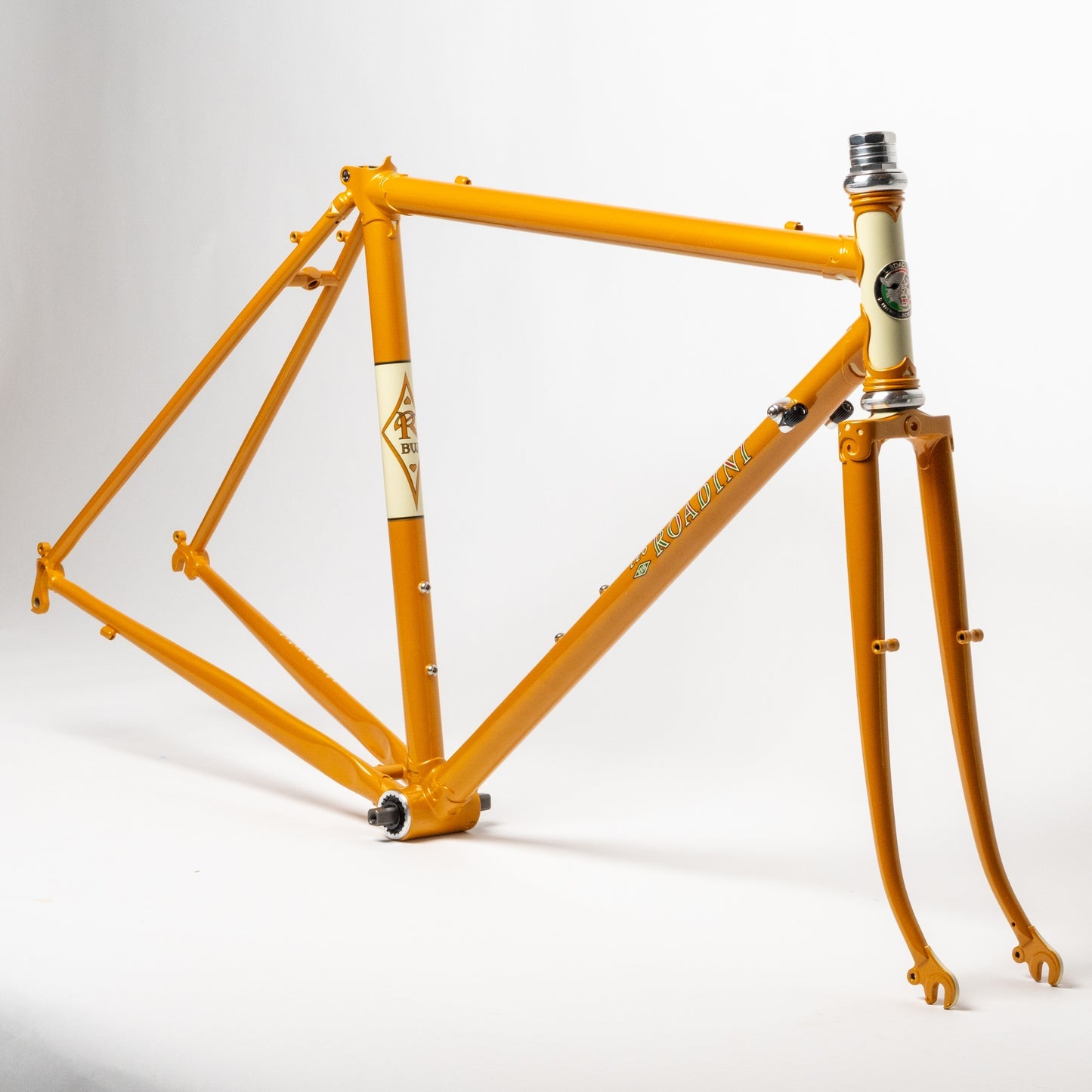

Frame Specification:

• 650b wheels in size 47cm…..for a zero-compromise frame design for shorter riders.
• 700c wheels in sizes 50cm and up . The most common size, available everywhere.
• Fits tires up to 43mm, or 38 with a fender.

• Fits long reach dual-pivot sidepulls or centerpulls. Make sure the brake has at least 63mm of reach.

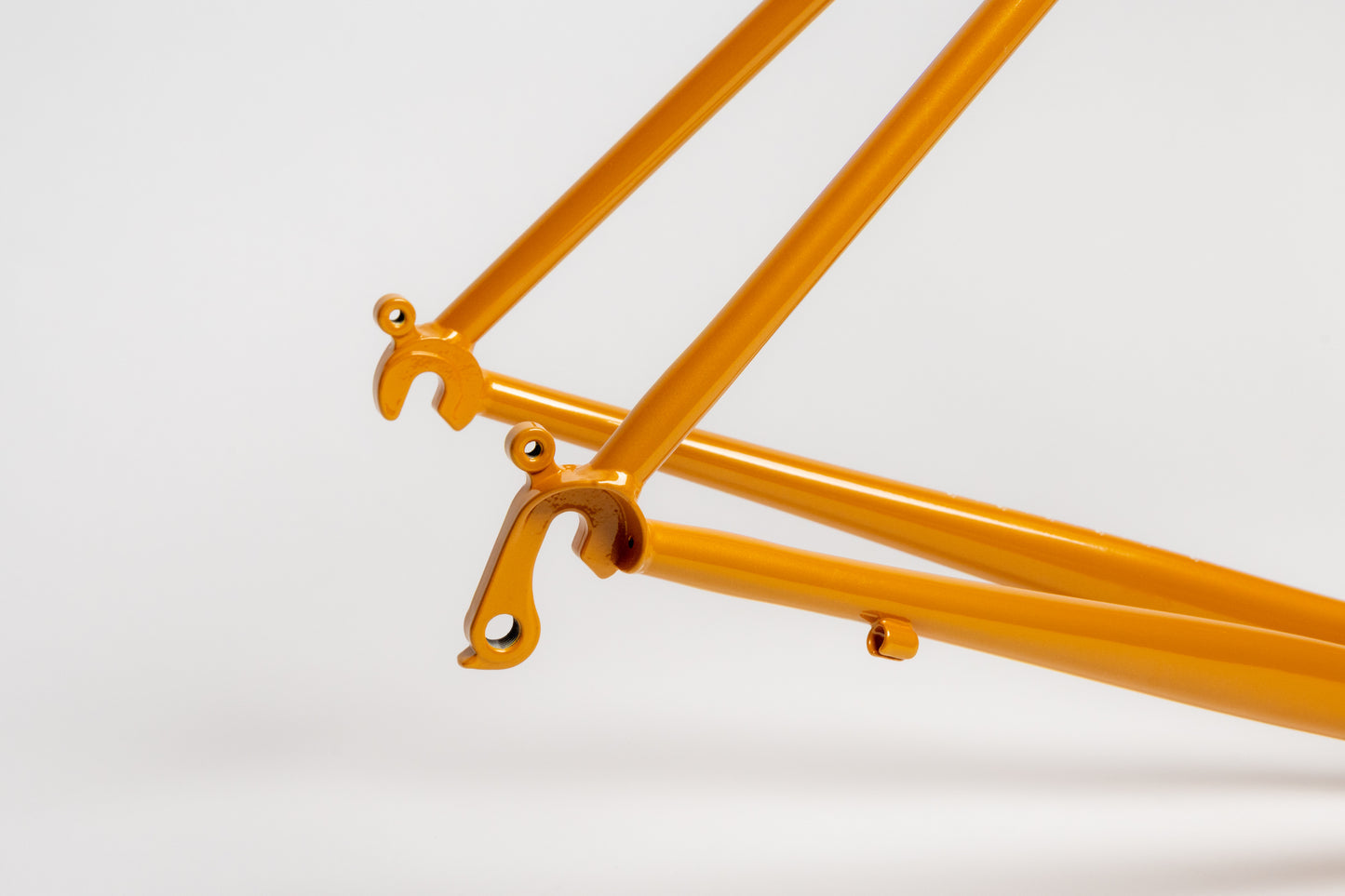

• 130mm rear spacing , totally normal.
• 1" threaded fork - FSA Duron headset included.

• A 113mm bottom bracket is included.
• Takes a 27.2 seatpost
• Geometry chart here.

Recommended PBHs and STANDOVER HEIGHTS at mid-top tube with 40mm tire:

47cm = 74-77cm PBH, 74.2cm standover
50cm = 79-84cm PBH, 78.0cm standover
54cm = 83-88cm PBH, 81.7cm standover
57cm = 86-91cm PBH, 84.5cm standover
61cm = 90-97cm PBH, 88.5cm standover

It is the most well-designed road bike we’ve ever made. Comfortable, versatile, safe, gorgeous, and great-riding. We’re quite proud of it, and are ready to answer you any questions you have that aren’t addressed here.
