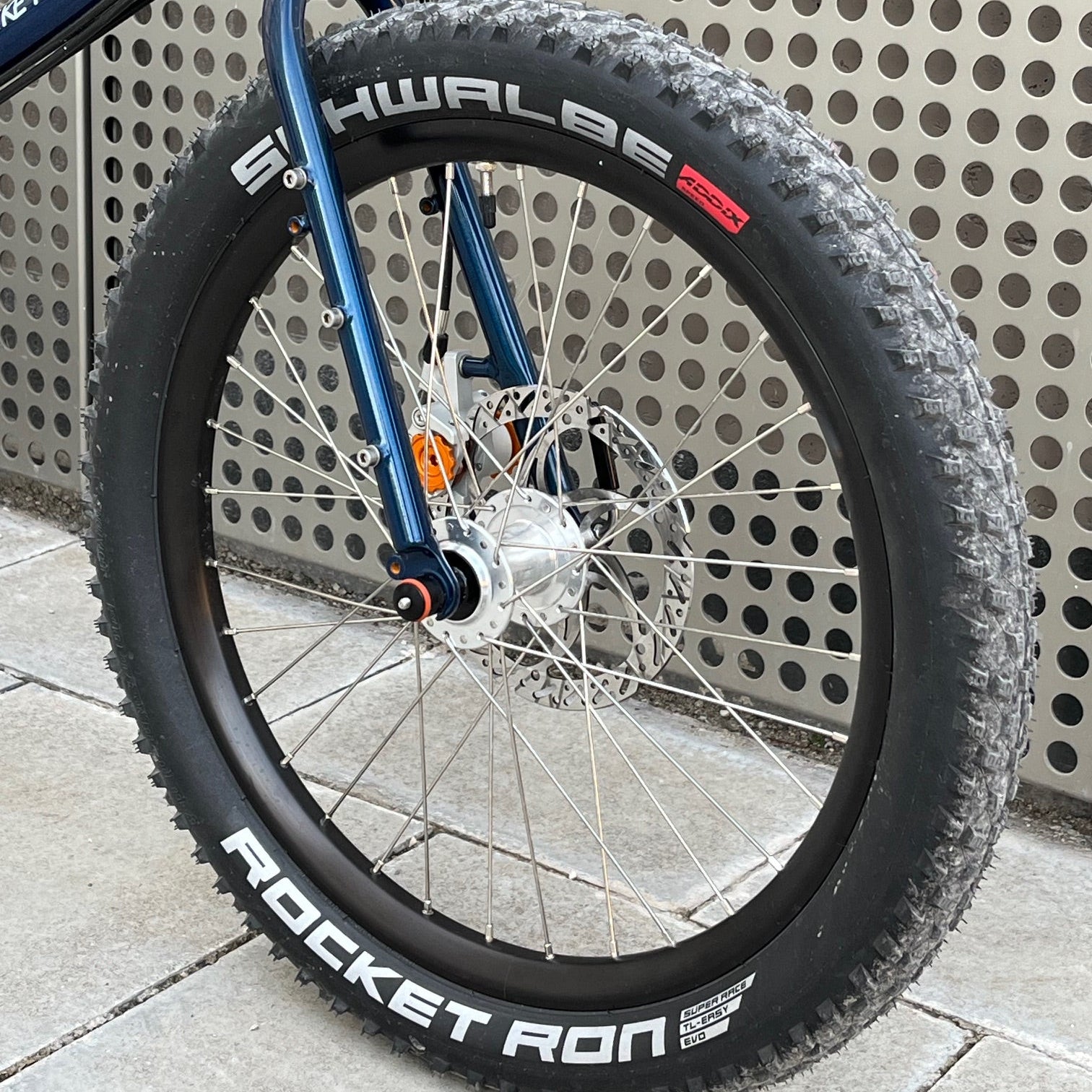

Radiale - E25 - Rim

The Radiale E25 has high lateral rigidity and good concentricity.  Thanks to the internal width of 25mm, many tires from 28mm wide and upwards fit these wheels.

• Size: 20''/406 mm
• type: clincher/tubeless
• colour: black
• material: 6063T6 alu
• outer with: 29,0 mm
• inner width: 25,0 mm
• height: 20,0 mm
• weight: 340 gr
• hole count: 32
• eyelets: no
• TL-ready: yes
• brake type: disc only
• valve hole: SV 6,5 mm
• joint: pinned
• max. spoke tension: 1300N
• max. tire pressure: 28 mm: 8 bar; 40 mm: 5 bar
• tire width: 28 mm - 45 mm
• offset: 0 mm
• max. weight limit: 150 kg
• Weight: 0.34 kg
