Surly Ogre

A Versatile All-Season Commuter Bike

If you’re like us, your bike needs likely change by the day, week, month or year. Quite the adaptable little beast, Ogre can get you to your job during the week, then way out of town on the weekend. It’s not sluggish on pavement or gravel and can also hold its own on singletrack.

Ogre is designed to be the ultimate steel utility vehicle. It relishes in those “take-the-long-way-home-and-find-some-beverages-along-the-way” sort of commutes. Snow, sleet or sweltering humidity, this is an ideal year-round commuter bike. You can also haul enough crap on it that you don’t even have to go home if you don’t want to.

• All the barnacles you could ever possibly ask for including rack and fender, multiple three-pack mounts and mid-blade.
• Gnot-Boost rear spacing with Rohloff torque arm slot and Bill/Ted trailer mount
• Clearance for 29” x 2.5” or 27.5" x 2.8" tires with fenders

Specs:

Frame: 100% Surly chromoly steel, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Color: Orlok's Shadow
Fork: 100% Surly chromoly steel, Natch tubes, double-butted, tapered fork blades, TIG welded, E.D. coated

Components
Headset: Cane Creek 40
Seat clamp: Surly stainless steel 30.0
Seatpost: Promax SP-2016, 27.2 × 300 mm
Stem: Promax DA-296
Grips / Handlebar tape: Velo Black
Saddle: WTB Volt Medium
Handlebars: Salsa Bend
Drivetrain
Rear derailleur: Shimano Deore M6100 SGS
Cassette: Shimano Deore M6100, 10–51 teeth, 12-speed
Chain: KMC X12 EPT Anti-Rust
Crankset: Shimano MT511, 30 teeth
Shift lever: Shimano Deore M6100
Brakes
Brake levers: Tektro HD-M275 / HD-M276

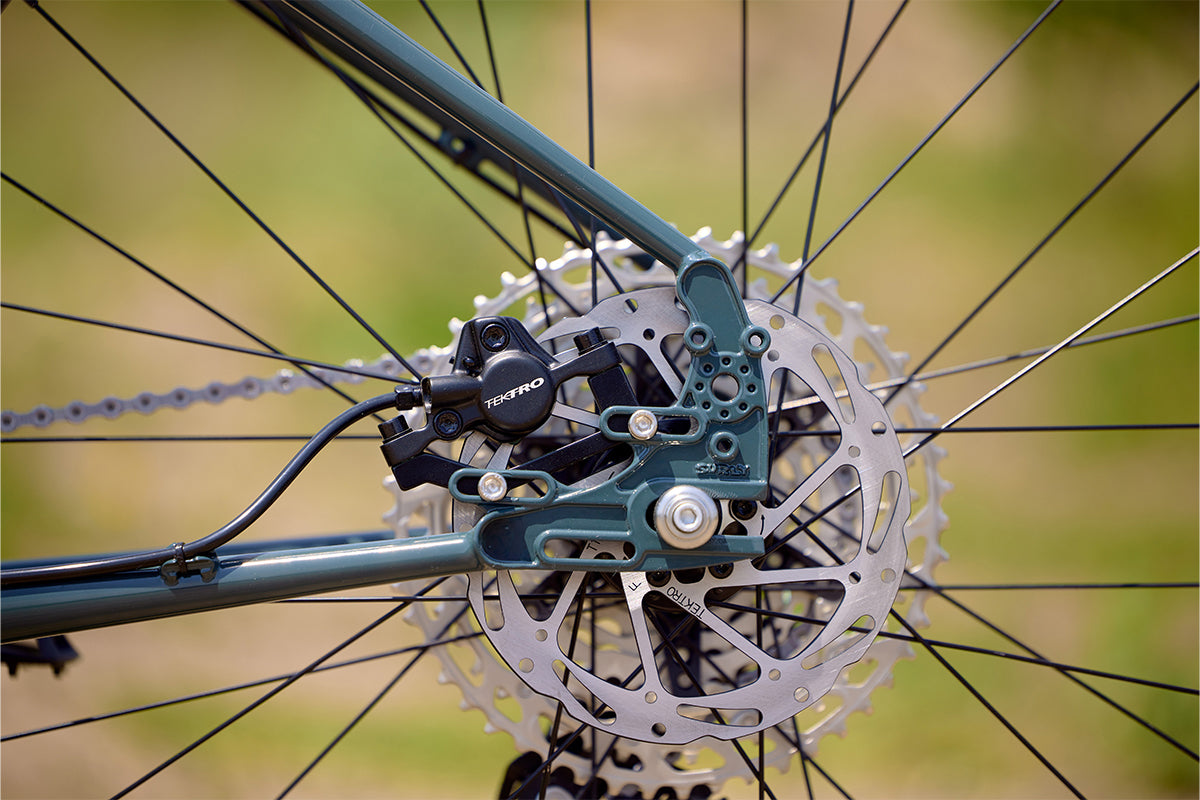

Brake calipers: Tektro HD-275 / HD-276, 2-piston
Bottom bracket: Shimano MT501 BSA
Brake discs: Tektro 160/160 mm, 6-bolt
Wheels
Front tire: Surly ExtraTerrestrial 29 × 2.5", 60 tpi, tubeless-ready (Slate Wall). Tubes installed, WTB TCS sealant included.
Rear tire: Surly ExtraTerrestrial 29 × 2.5", 60 tpi, tubeless-ready (Slate Wall). Tubes installed, WTB TCS sealant included.
Front hub: Novatec QR 9 × 100 mm, 32 holes, 6-hole
Rear hub: Novatec TA 12 × 142 mm, 32 holes, 6-hole
Rims: WTB ST i30 29", TCS 2.0, 32 holes
Weight: Complete bike: 13.65 kg (size M)
